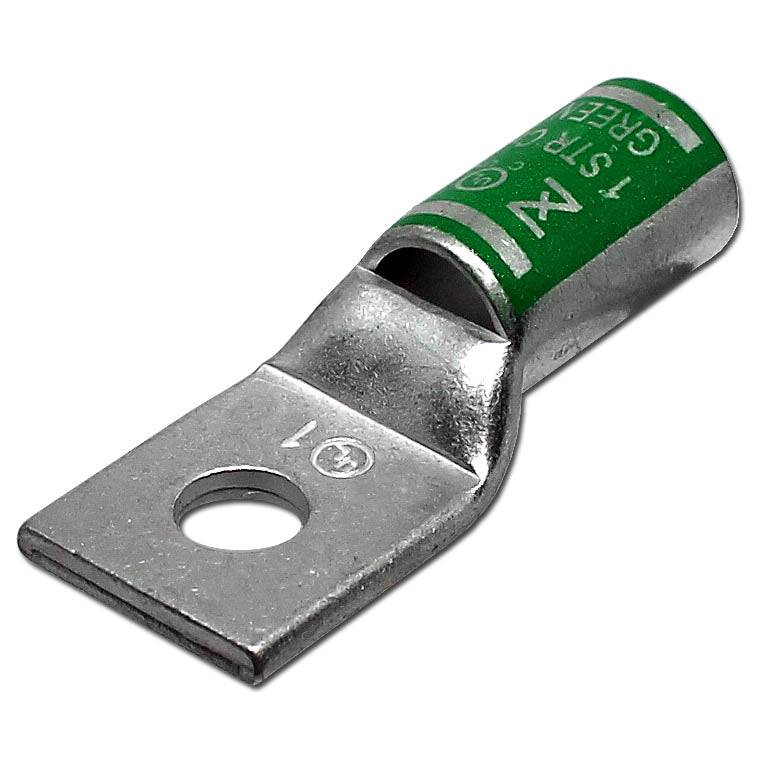

SB112 - 1AWG Compression Lug - 1/2" Stud Size

Name: SB112 - 1AWG Compression Lug - 1/2" Stud Size
Brand: Ferrules Direct
SKU: SB112
Price: 1.63 USD
Availability: InStock

$1.63 - $1.63

$1.63

$1.63 - $1.63

$1.63

SKU SB112

Disponibilidad:

en stock, listo para ser enviado

Cantidad

true

SHORT BARREL COMPRESSION LUGS

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	1 AWG
Stud Size (E)	1/2" Stud
Barrel Type	Short Barrel
Material	Copper (Tin Plated)
Overall Length (L)	53.6mm (2.1")
Barrel Length (L1)	28.7mm (1.10")
Barrel Width (D)	17.8mm (0.70")
Flange Outside Dimension (D1)	11.7mm (0.46")
Flange Inside Dimension (D2)	9.1mm (0.35")
Flange Length (B)	20.3mm (0.80")
Thickness (F)	2.3mm (0.09")
Seam Style	Seamless
Inspection Hole	Yes
Recommended Conductor Material	Copper
Maximum Operating Temperature	194°F (90°C)
Maximum Electrical Rating	35 KV
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
Cut Sheet	Descargar archivo
