SB40038 - 400MCM Compression Lug - 3/8" Stud Size - Ferrules Direct

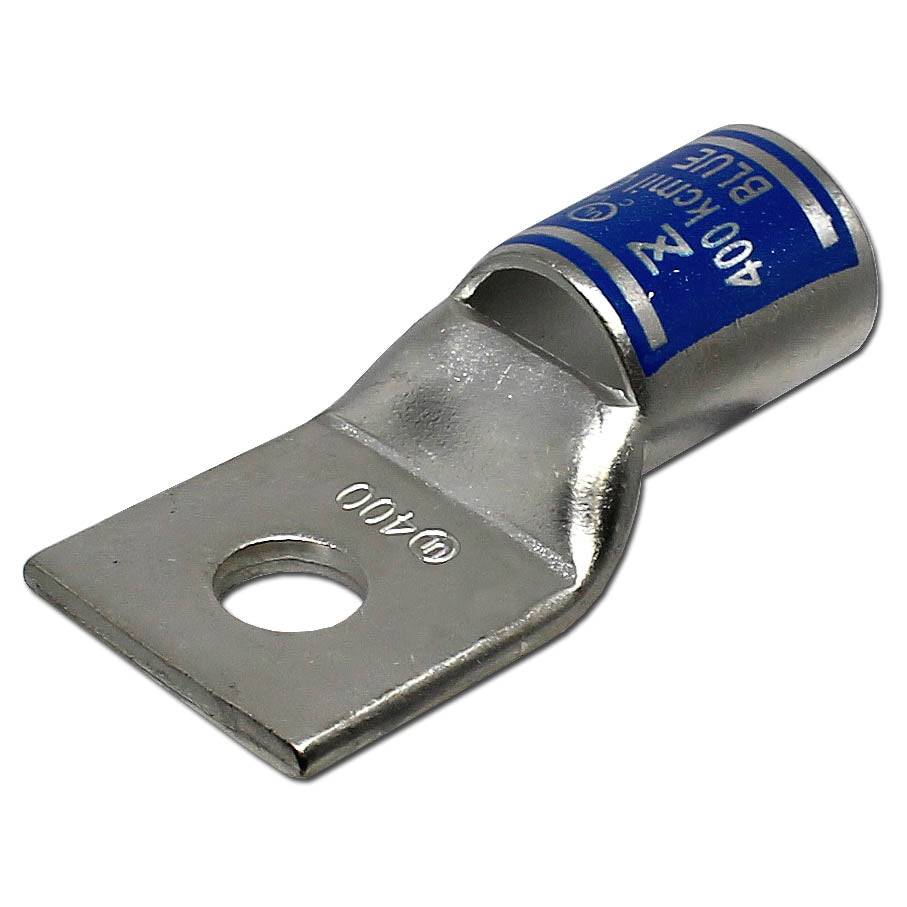

SB40038 - 400 MCM Compression Lug, Short Barrel, 3/8" Stud Size, 1 Piece

Name: SB40038 - 400 MCM Compression Lug, Short Barrel, 3/8" Stud Size, 1 Piece
Brand: Ferrules Direct
SKU: SB40038
Price: 8.07 USD
Availability: InStock
Rating: 5.0 (1 reviews)

$8.07 - $8.07

$8.07

$8.07 - $8.07

$8.07

SKU SB40038

Pack Quantity: 1 Piece

Disponibilidad:

en stock, listo para ser enviado

Cantidad

true

SHORT BARREL COMPRESSION LUGS

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

COMPARE TO THESE PARTS:

/* if no javascript: get back ATC button */ body:not(.spo-loaded) [data-shopify="payment-button"], body:not(.spo-loaded).template-product form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-collection form[action="/cart/add"] [type=submit], body:not(.spo-loaded).template-index form[action="/cart/add"] [type=submit], body:not(.spo-loaded) form[action="/cart/add"] [type=submit] {opacity: 1; pointer-events: all} body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) button, body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="submit"], body:not(.spo-loaded) form[action^="/cart"]:not([action^="/cart/add"]):not(#currency_form) input[type="button"], body:not(.spo-loaded) [name="checkout"], body:not(.spo-loaded) [name="goto_pp"], body:not(.spo-loaded) [name="goto_amazon_payments"] {opacity: 1; pointer-events: all}

PRODUCT INFORMATION
Wire Size	400MCM
Stud Size (E)	3/8" Stud
Cut Sheet (PDF)	Descargar archivo
Barrel Type	Short Barrel
Material	Copper (Tin Plated)
Color	Blue
Overall Length (L)	76.5mm (3.01")
Tab Length (L1)	31.8mm (1.25")
Tab Width (D)	35.3mm (1.39")
Outer Diameter (D1)	24mm (0.94")
Inner Diameter (D2)	19.8mm (0.78")
Barrel Length (B)	32mm (1.26")
Thickness (F)	4mm (0.16")
Seam Style	Seamless
Inspection Hole	Yes
Recommended Conductor Material	Copper
Maximum Electrical Rating	35 KV
Maximum Electrical Current	545A
UL Recognized	Yes
CE Certified	Yes
RoHS Compliant	Yes
REACH Compliant	Yes
