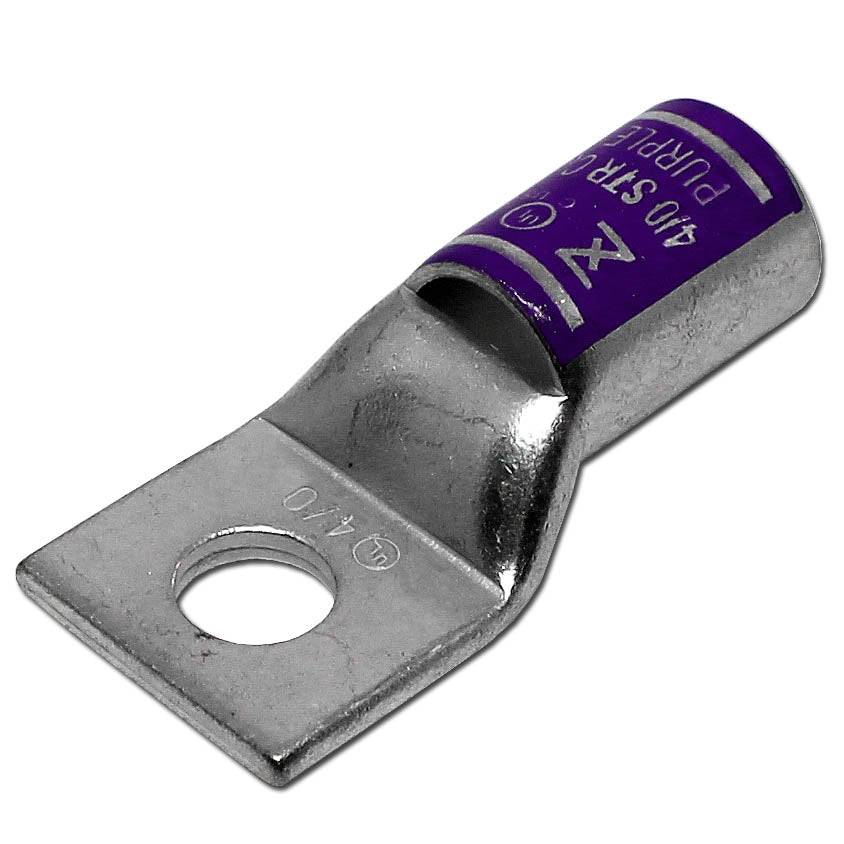

SB4012 - 4/0 AWG Compression Lug - 1/2" Stud Size
Precio original
$3.80
-
Precio original
$3.80
Precio original
$3.80
$3.80
-
$3.80
Precio actual
$3.80
SKU SB4012
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 4/0 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Purple |
| L: | 63.0mm (2.48") |
| L1: | 28.7mm (1.130") |
| D: | 25.4mm (1.00") |
| D1: | 17.4mm (0.685") |
| D2: | 14.2mm (0.560") |
| B: | 25.4mm (1.00") |
| E: | 13.1mm (0.515") |
| F: | 3.1mm (0.122") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 360A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
