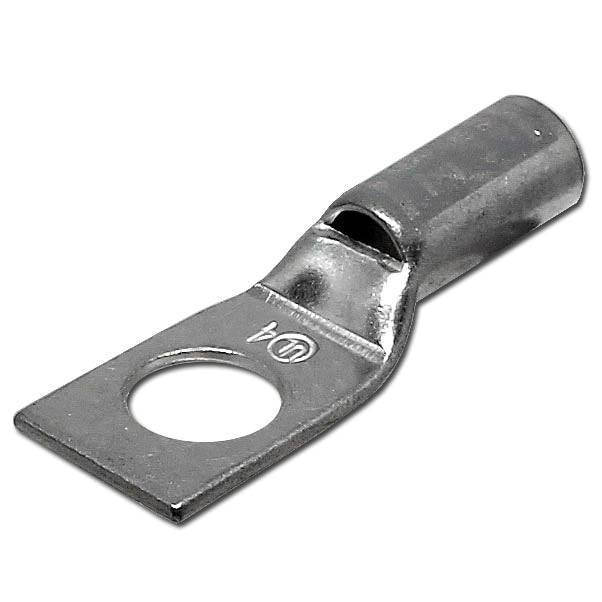

SB412 - 4 AWG Compression Lug - 1/2" Stud Size
Precio original
$0.94
-
Precio original
$0.94
Precio original
$0.94
$0.94
-
$0.94
Precio actual
$0.94
SKU SB412
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 4 AWG |
| Stud Size: | 1/2" Stud |
| Color: | Gray |
| L: | 50mm (1.96") |
| L1: | 28.7mm (1.13") |
| D: | 17.8mm (0.70") |
| D1: | 9.1mm (0.36") |
| D2: | 7.1mm (0.28") |
| B: | 17.5mm (0.69") |
| E: | 13.1mm (0.52") |
| F: | 1.4mm (0.06") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 125A |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
