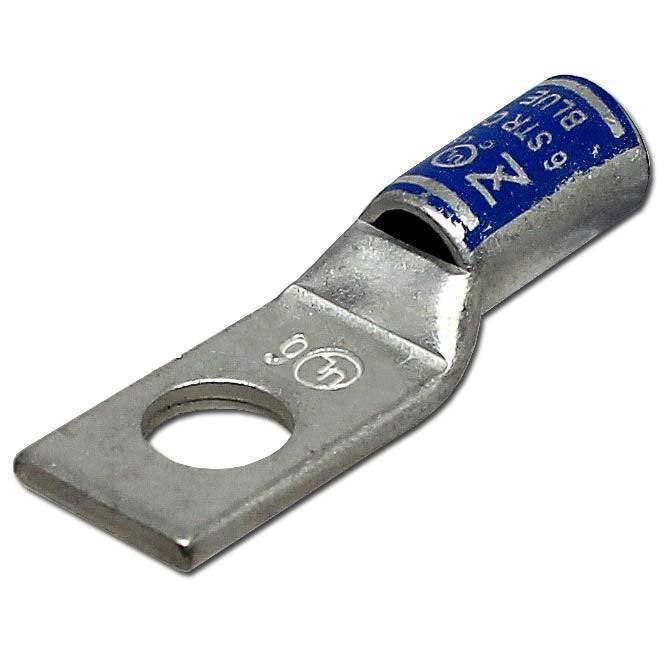

SB638 - 6 AWG Compression Lug - 3/8" Stud Size
Precio original
$0.64
-
Precio original
$0.64
Precio original
$0.64
$0.64
-
$0.64
Precio actual
$0.64
SKU SB638
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Click to view product spec sheet:
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 3/8" Stud |
| Color: | Blue |
| L: | 38mm (1.50") |
| L1: | 21.1mm (0.83") |
| D: | 15.2mm (0.60") |
| D1: | 7.9mm (0.31") |
| D2: | 5.9mm (0.23") |
| B: | 13.7mm (0.54") |
| E: | 10.4mm (0.41") |
| F: | 1.4mm (0.06") |
| Material: | Tin Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35 KV |
| Maximum Amp Rating: | 65 Amps |
| UL Approved: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
