SBF1012 - 90 Degree Short Barrel Compression Lug - 1/0 AWG - 1/2" Stud

Precio original $2.99 - Precio original $2.99
Precio original
$2.99
$2.99 - $2.99
Precio actual $2.99
SKU SBF1012
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1/0 AWG
Color: Pink
C: 10.2mm (0.40")
E: 13.1mm (0.52")
D: 18.4mm (0.73")
G: 12.7mm (0.50")
B: 20.3mm (0.80")
Terminal Material: Tin-Plated Copper
Stud Size: 1/2"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 150 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

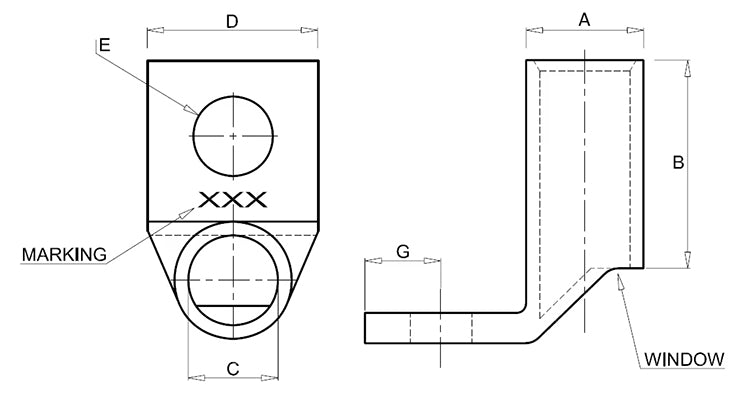

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
