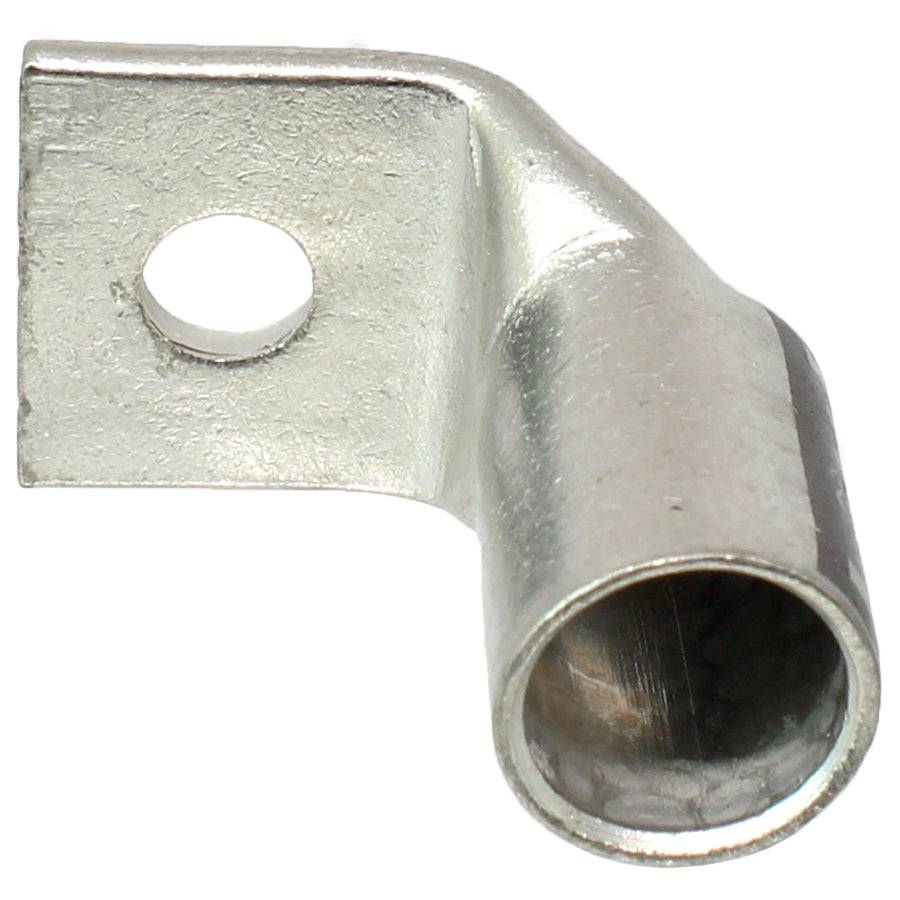

SBF2014 - 90 Degree Short Barrel Compression Lug - 2/0 AWG - 1/4" Stud
Precio original
$2.85
-
Precio original
$2.85
Precio original
$2.85
$2.85
-
$2.85
Precio actual
$2.85
SKU SBF2014
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 2/0 AWG |
Color: | Black |
C: | 11.7mm (0.46") |
E: | 8.8mm (0.34") |
D: | 20.8mm (0.82") |
G: | 8.3mm (0.33") |
B: | 21.3mm (0.84") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 1/4" |
Temperature Rating: | 90oC |
Voltage Rating: | 35KV |
Maximum Amp Rating: | 175 Amps |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
