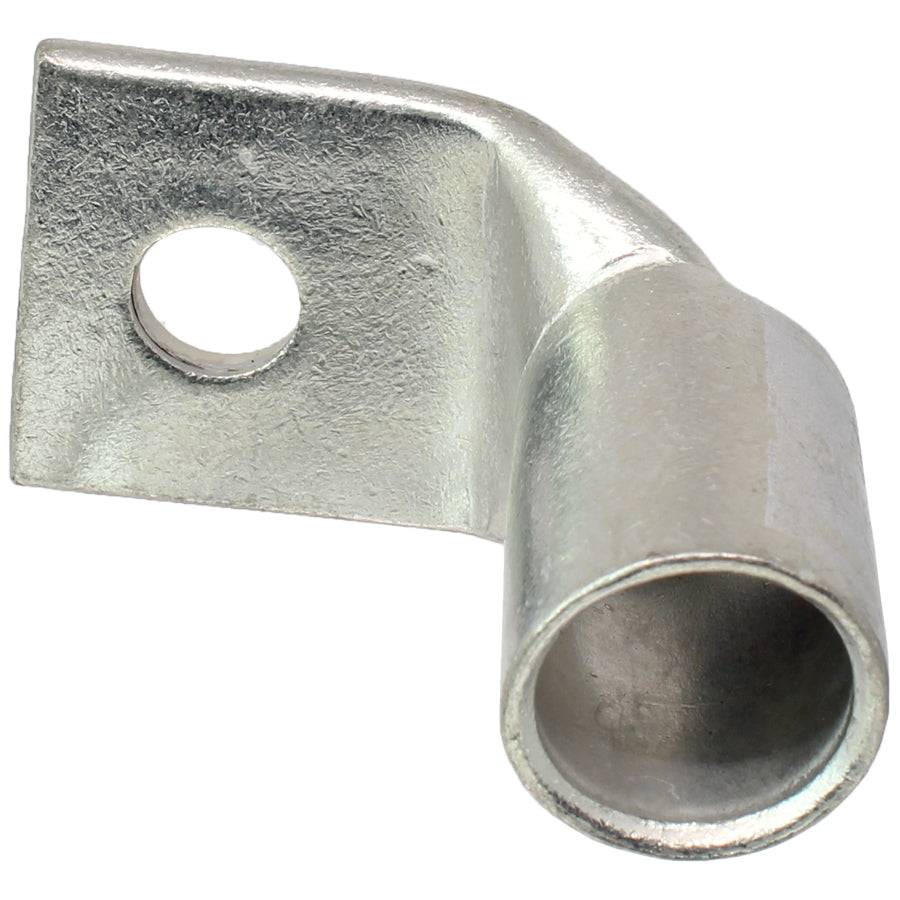

SBF30038 - 90 Degree Short Barrel Compression Lug - 300 MCM - 3/8" Stud
Precio original
$8.62
-
Precio original
$8.62
Precio original
$8.62
$8.62
-
$8.62
Precio actual
$8.62
SKU SBF30038
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 300 MCM |
| Color: | White |
| C: | 17.1mm (0.68") |
| E: | 10.4mm (0.41") |
| D: | 30.2mm (1.19") |
| G: | 12.2mm (0.48") |
| B: | 27.9mm (1.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Maximum Amp Rating: | 285 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
