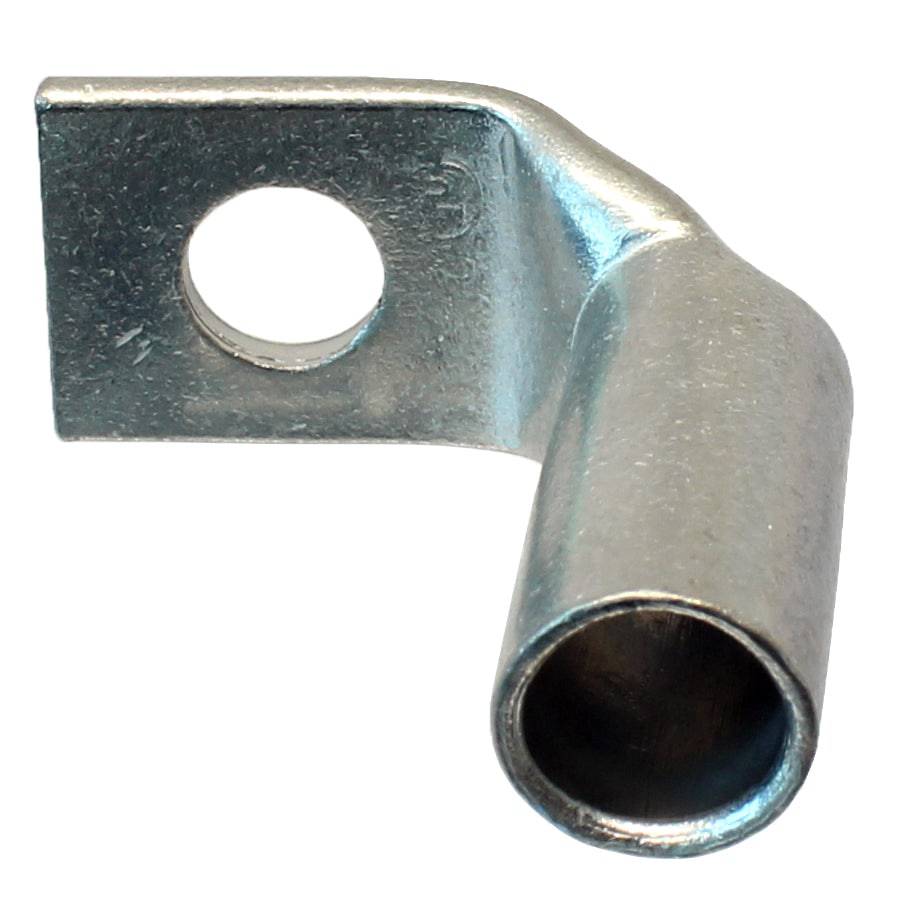

SBF314 - 90 Degree Short Barrel Compression Lug - 3 AWG - 1/4" Stud

Precio original $1.37 - Precio original $1.37
Precio original
$1.37
$1.37 - $1.37
Precio actual $1.37
SKU SBF314
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 3 AWG
Color: White
C: 7.9mm (0.31")
E: 7.1mm (0.28")
D: 14.5mm (0.57")
G: 8.3mm (0.33")
B: 20.3mm (0.80")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Ampere Rating: 100 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
