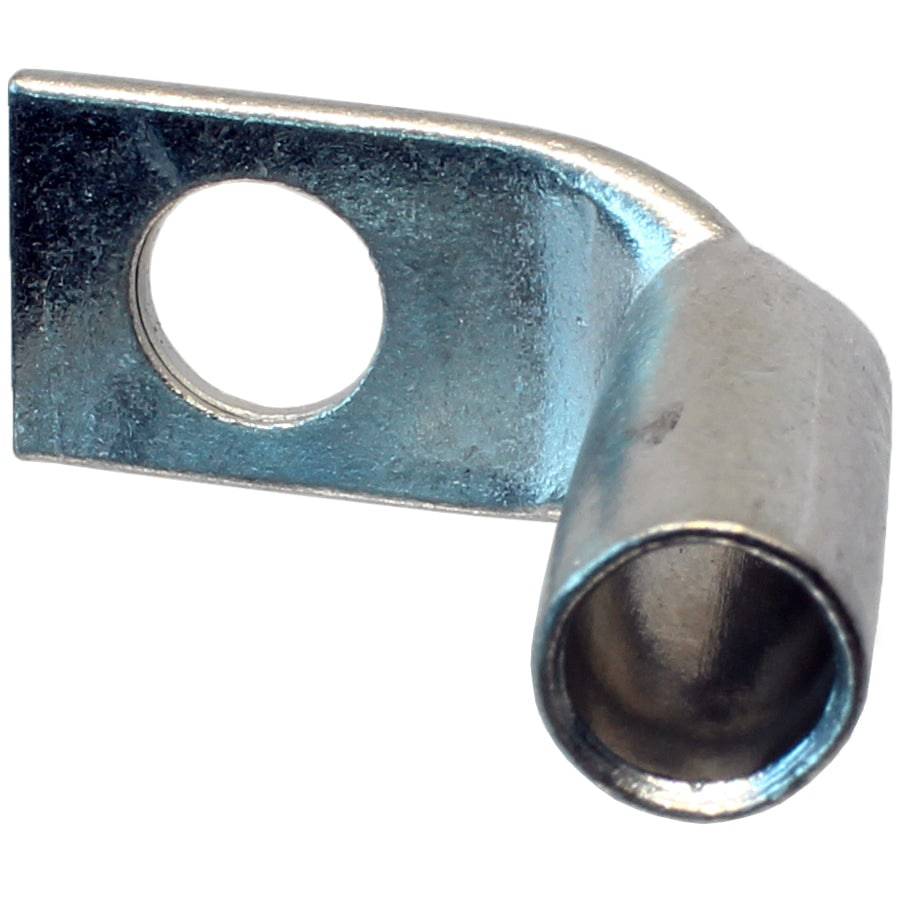

SBF3516 - 90 Degree Short Barrel Compression Lug - 3 AWG - 5/16" Stud
Precio original
$1.35
-
Precio original
$1.35
Precio original
$1.35
$1.35
-
$1.35
Precio actual
$1.35
SKU SBF3516
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 3 AWG |
| Color: | White |
| C: | 7.9mm (0.31") |
| E: | 8.9mm (0.35") |
| D: | 14.5mm (0.57") |
| G: | 8.9mm (0.35") |
| B: | 20.3mm (0.80") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/16" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Maximum Ampere Rating: | 100 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
