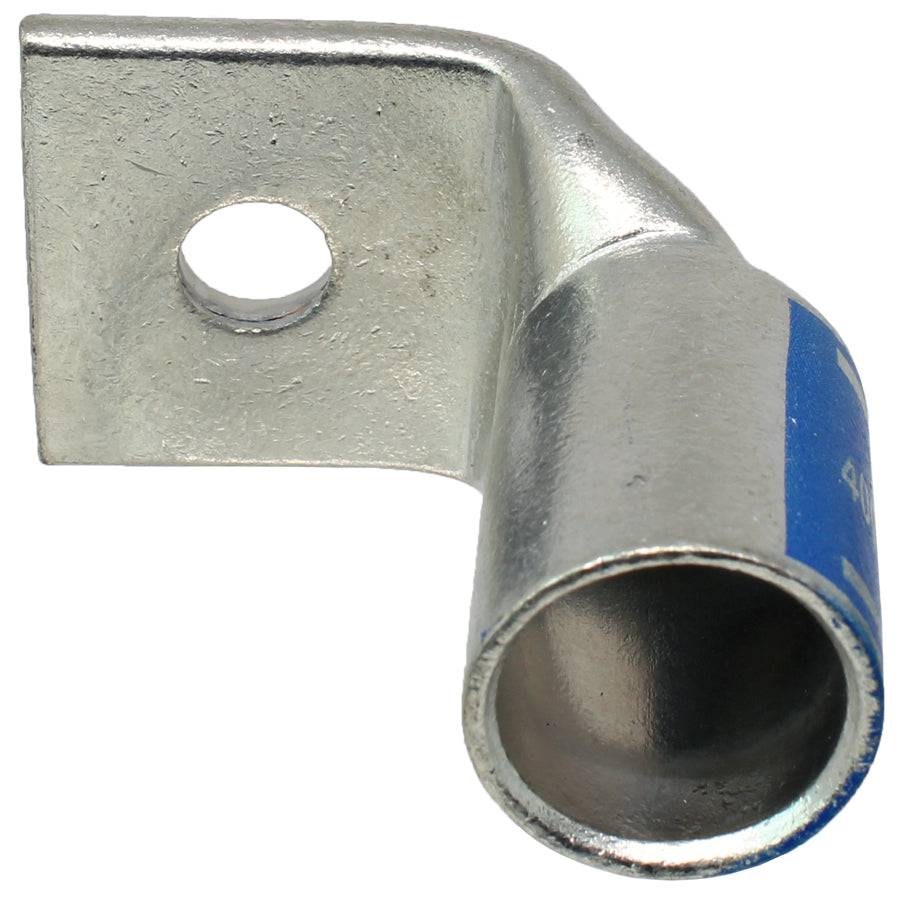

SBF40038 - 90 Degree Short Barrel Compression Lug - 400 MCM - 3/8" Stud
Precio original
$12.75
-
Precio original
$12.75
Precio original
$12.75
$12.75
-
$12.75
Precio actual
$12.75
SKU SBF40038
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 400 MCM |
Color: | Blue |
C: | 19.8mm (0.78") |
E: | 10.4mm (0.41") |
D: | 35.3mm (1.39") |
G: | 15.2mm (0.60") |
B: | 32.0mm (1.26") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 3/8" |
Temperature Rating: | 90oC |
Voltage Rating: | 35KV |
Maximum Amp Rating: | 335 Amps |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
