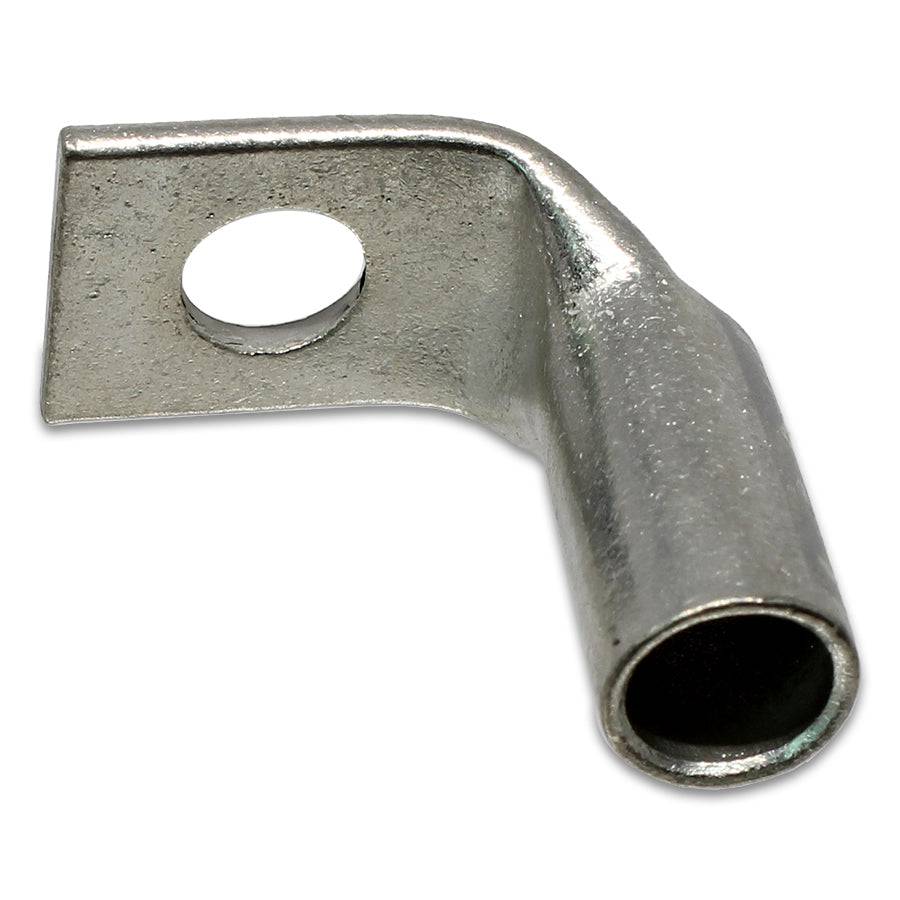

SBF414 - 90 Degree Short Barrel Compression Lug - 4 AWG - 1/4" Stud

Precio original $1.18 - Precio original $1.18
Precio original
$1.18
$1.18 - $1.18
Precio actual $1.18
SKU SBF414
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4 AWG
Color: Gray
C: 7.1mm (0.28")
E: 7.1mm (0.28")
D: 13.7mm (0.54")
G: 8.4mm (0.33")
B: 17.5mm (0.69")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Amp Rating: 85 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
