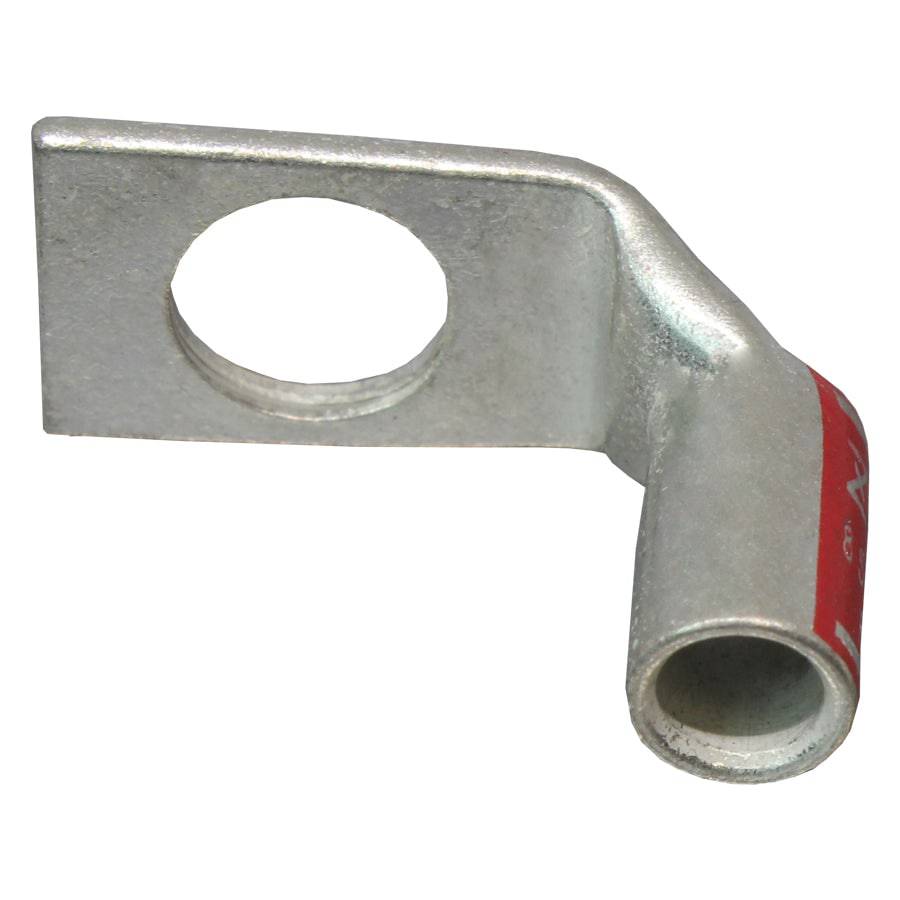

SBF8516 - 90 Degree Short Barrel Compression Lug - 8 AWG - 5/16" Stud

Precio original $0.67 - Precio original $0.67
Precio original
$0.67
$0.67 - $0.67
Precio actual $0.67
SKU SBF8516
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 8 AWG
Color: Red
C: 4.8mm (0.19")
E: 8.9mm (0.35")
D: 13.7mm (0.54")
G: 8.9mm (0.35")
B: 12.7mm (0.50")
Terminal Material: Tin-Plated Copper
Stud Size: 5/16"
Temperature Rating: 90oC
Voltage Rating: 35KV
Maximum Ampere Rating: 50 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
