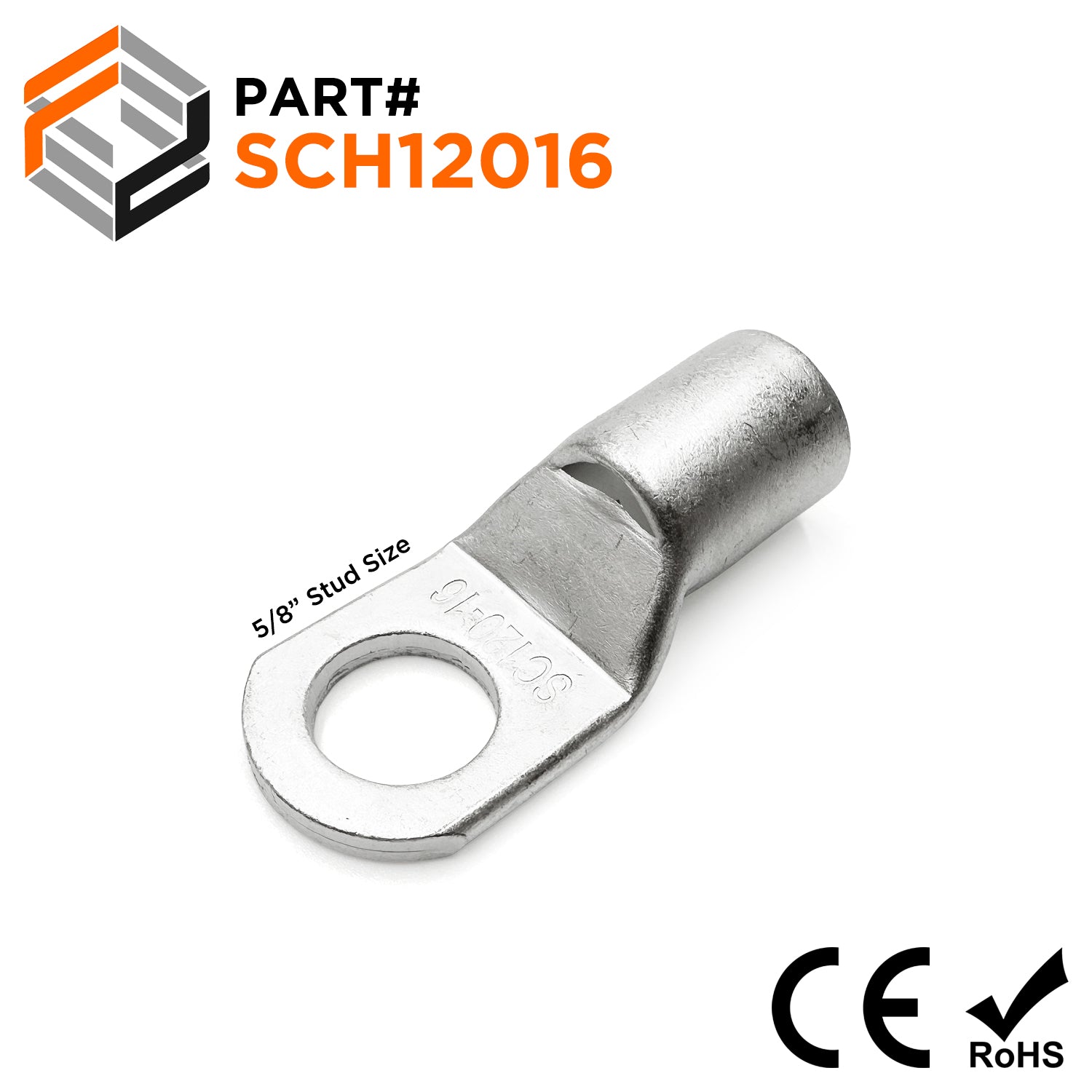

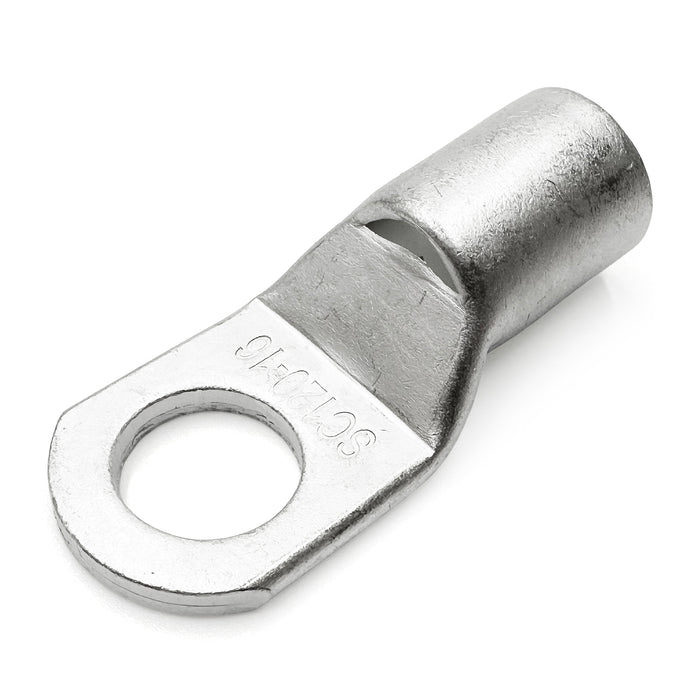

SCH12016 - Non Insulated Tubular Ring Lugs - 4/0 AWG

Precio original $18.24 - Precio original $18.24
Precio original
$18.24
$18.24 - $18.24
Precio actual $18.24
SKU SCH12016
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 5 Pieces

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4/0 AWG
F: 25.5mm (1.00")
W: 27.6mm (1.09")
L: 63mm (2.48")
D: 19.0mm (0.75")
D1: 15.0mm (0.59")
D2: 17.0mm (0.67")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 5/8"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 230 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:
