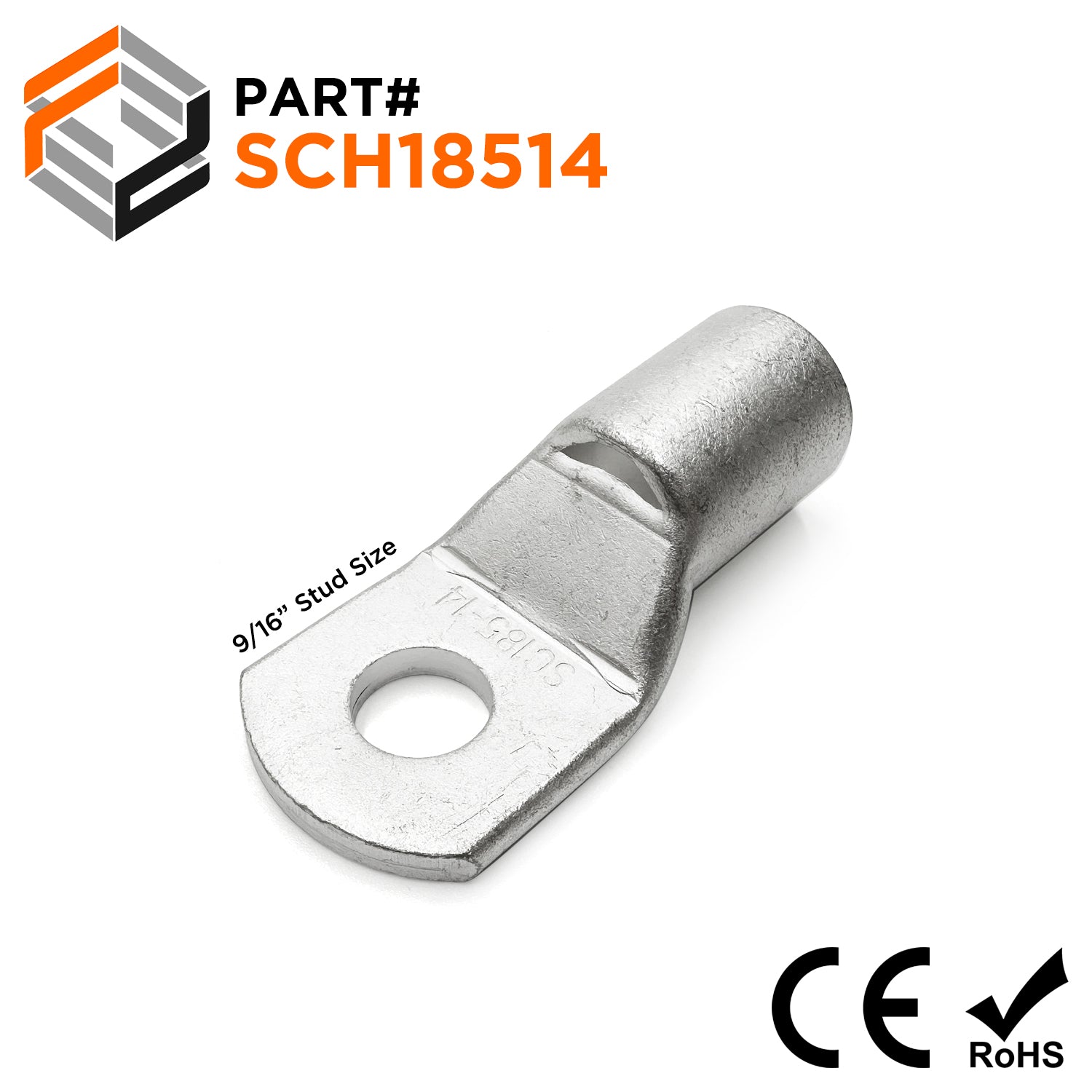

SCH18514 - Non Insulated Tubular Ring Lugs - 365MCM

Agotado
Precio original $32.02 - Precio original $32.02
Precio original
$32.02
$32.02 - $32.02
Precio actual $32.02
SKU SCH18514
Disponibilidad:
Agotado
Piece Quantity: 5 Pieces

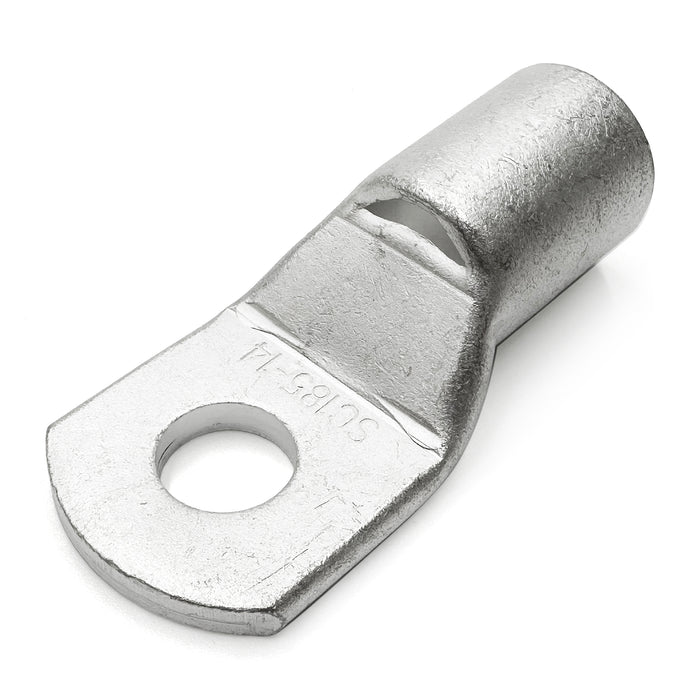

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 365MCM
F: 32.0mm (1.26")
W: 34.5mm (1.36")
L: 77mm (3.03")
D: 23.5mm (0.93")
D1: 19.5mm (0.77")
D2: 15.0mm (0.59")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 9/16"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 310 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
