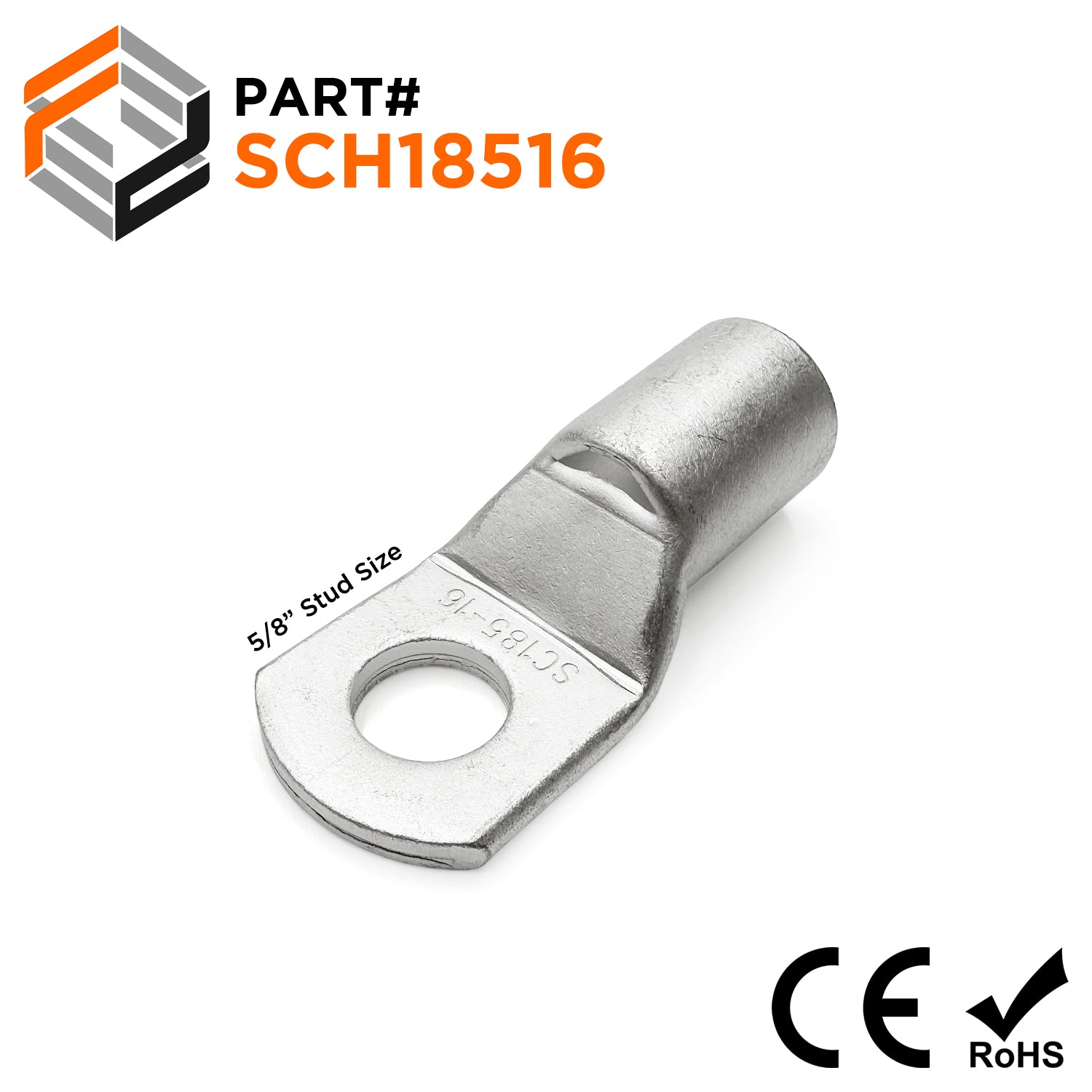

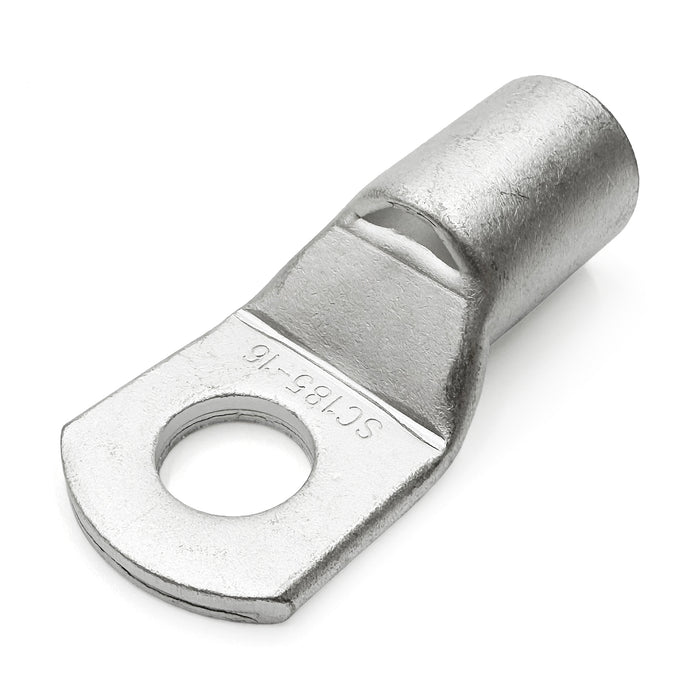

SCH18516 - Non Insulated Tubular Ring Lugs - 365MCM

Agotado
Precio original $32.02 - Precio original $32.02
Precio original
$32.02
$32.02 - $32.02
Precio actual $32.02
SKU SCH18516
Disponibilidad:
Agotado
Piece Quantity: 5 Pieces
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 365MCM
F: 32.0mm (1.26")
W: 34.5mm (1.36")
L: 77mm (3.03")
D: 23.5mm (0.93")
D1: 19.5mm (0.77")
D2: 17.0mm (0.67")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 5/8"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 310 Amps
UL Recogonized: No
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:
