SCH24014 - Non Insulated Tubular Ring Lugs - 473MCM - Ferrules Direct

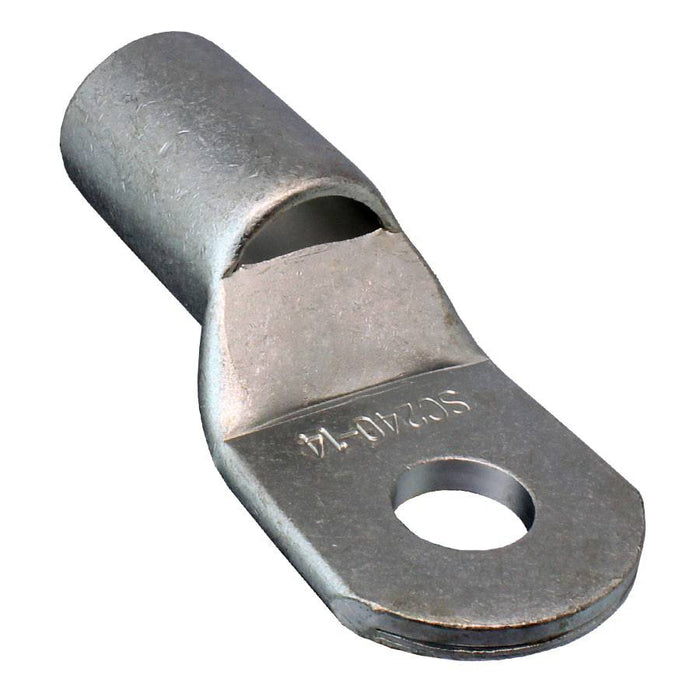

SCH24014 - Non Insulated Tubular Ring Lugs - 473MCM

$44.30 - $44.30
$44.30
$44.30 - $44.30
$44.30
SKU SCH24014

Quantity: 5 Pieces

Disponibilidad:
en stock, listo para ser enviado
true

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 473MCM
F: 39.0mm (1.54")
W: 38.0mm (1.50")
L: 90.5mm (3.56")
D: 26.0mm (1.02")
D1: 21.0mm (0.83")
D2: 15.0mm (0.59")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 9/16"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 335 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:
None:

Documents

Click to view product spec sheet:
