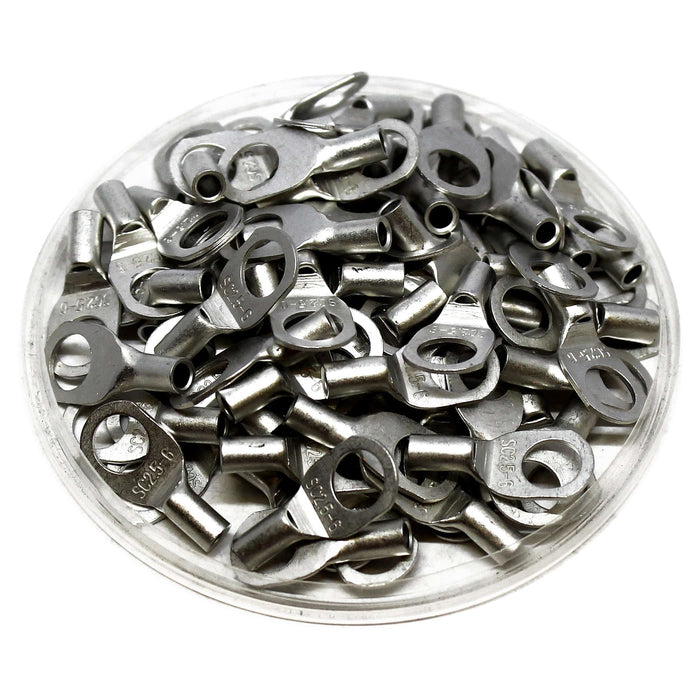

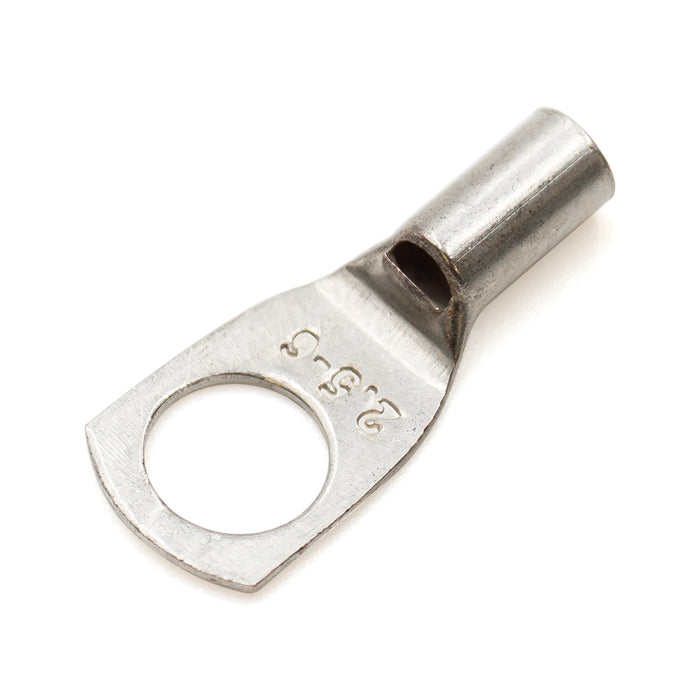

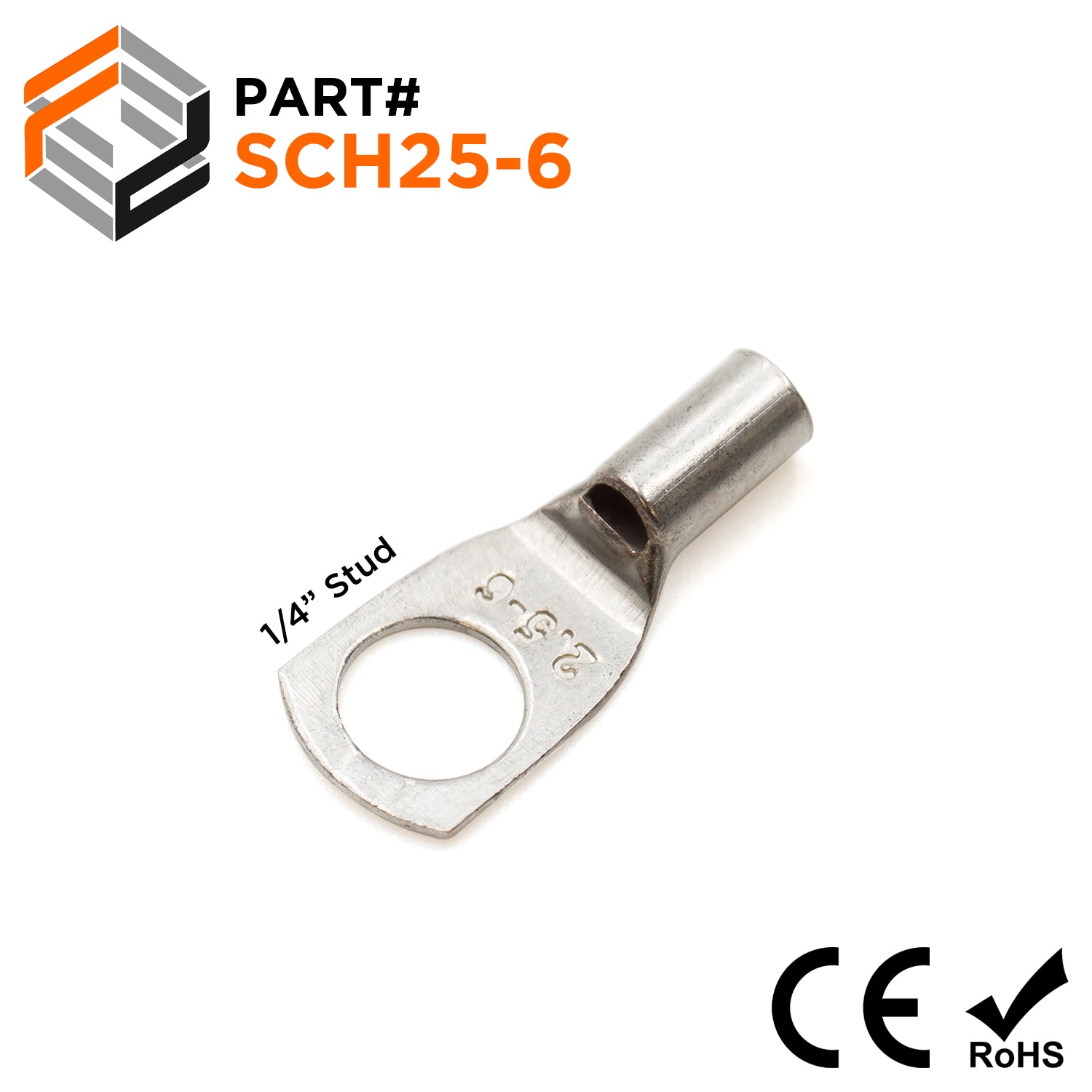

SCH25-6 - Non Insulated Tubular Ring Lugs - 14 AWG

Precio original $11.94 - Precio original $11.94
Precio original
$11.94
$11.94 - $11.94
Precio actual $11.94
SKU SCH25-6
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 100 Pieces
true

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 14 AWG
F: 7.0mm (0.28")
W: 9.2mm (0.36")
L: 20.0mm (0.79")
D: 4.0mm (0.16")
D1: 2.6mm (0.10")
D2: 6.5mm (0.26")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 1/4"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 15 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:
