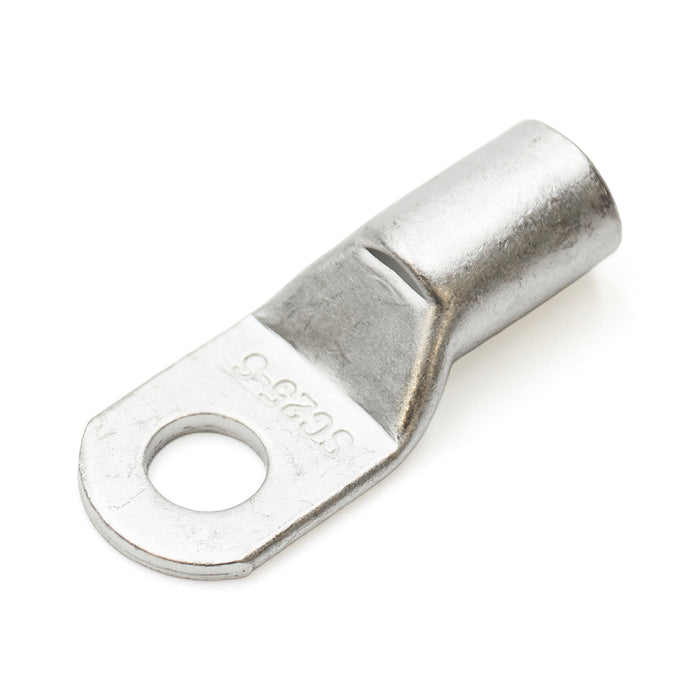

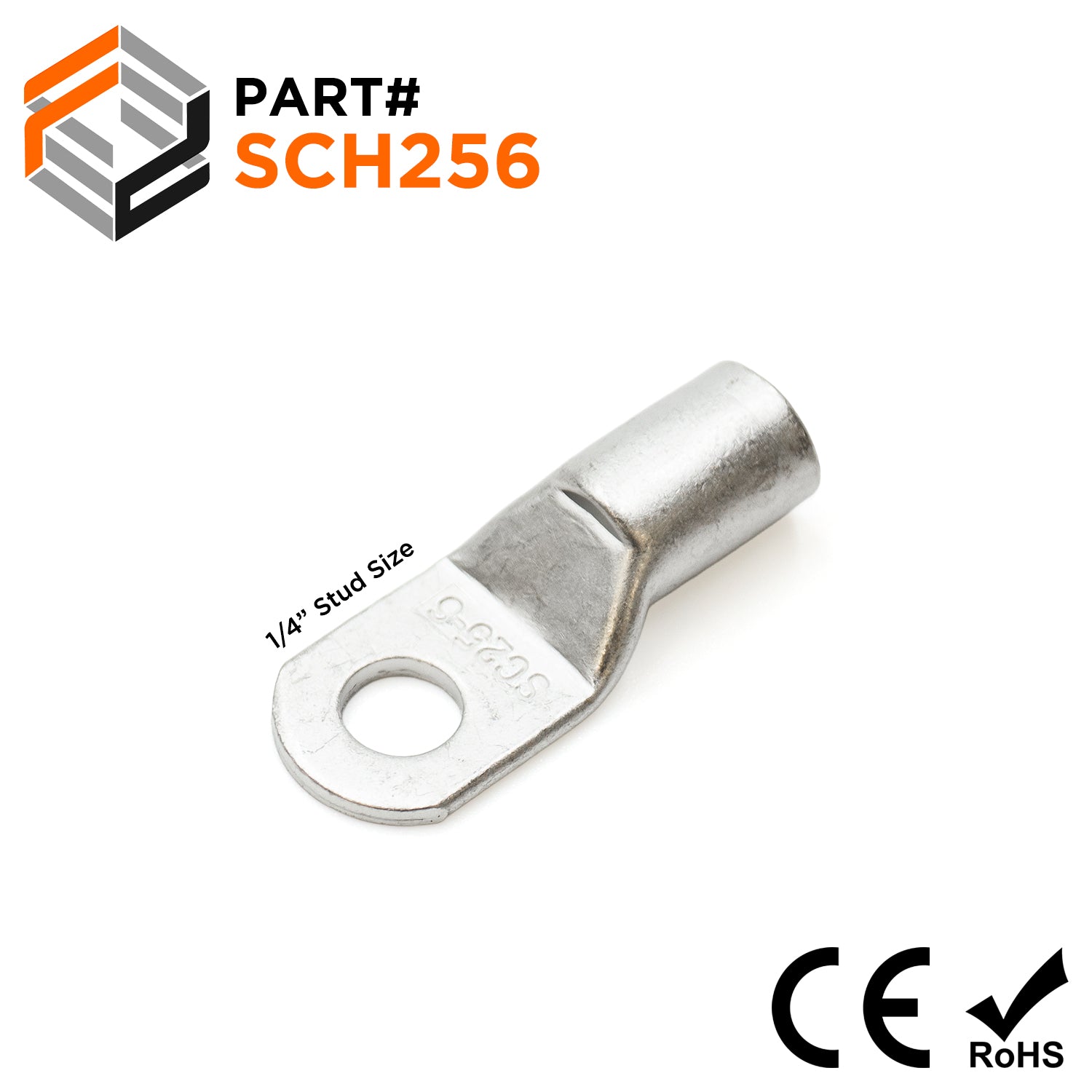

SCH256 - Non Insulated Tubular Ring Lugs - 4 AWG
Precio original
$10.12
-
Precio original
$10.12
Precio original
$10.12
$10.12
-
$10.12
Precio actual
$10.12
SKU SCH256
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 4 AWG |
| F: | 13.5mm (0.53") |
| W: | 13.1mm (0.62") |
| L: | 32.5mm (1.28") |
| D: | 9.0mm (0.35") |
| D1: | 7.2mm (0.28") |
| D2: | 6.5mm (0.26") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 1/4" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 85 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
Documents
Click to view product spec sheet:
