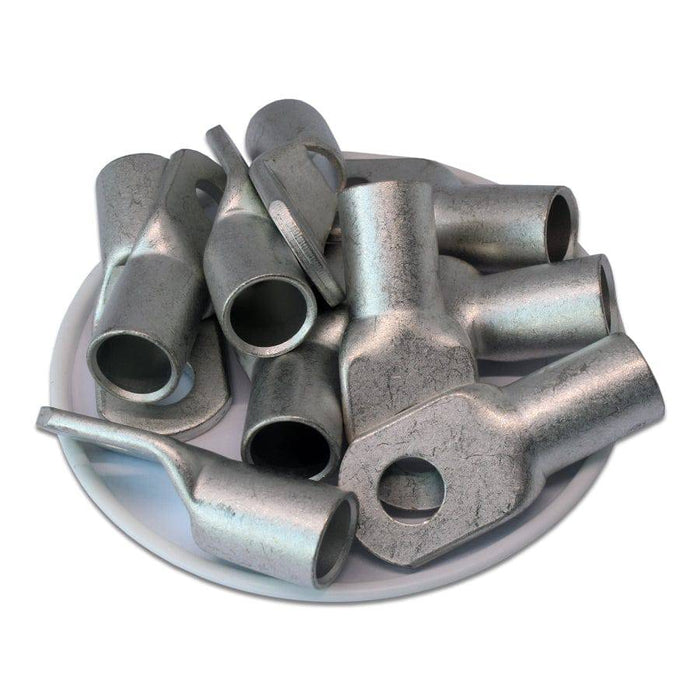

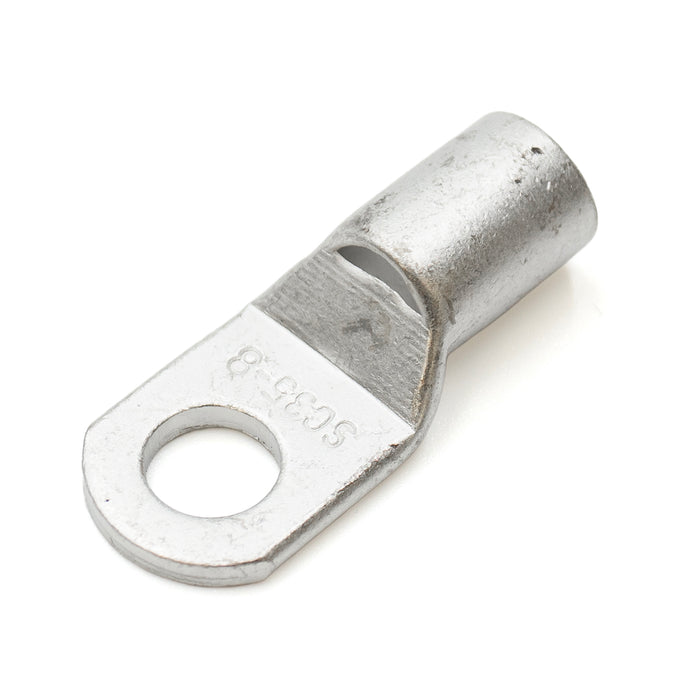

SCH358 - Non Insulated Tubular Ring Lugs - 2 AWG

Precio original $18.60 - Precio original $18.60
Precio original
$18.60
$18.60 - $18.60
Precio actual $18.60
SKU SCH358
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 25 Pieces
true

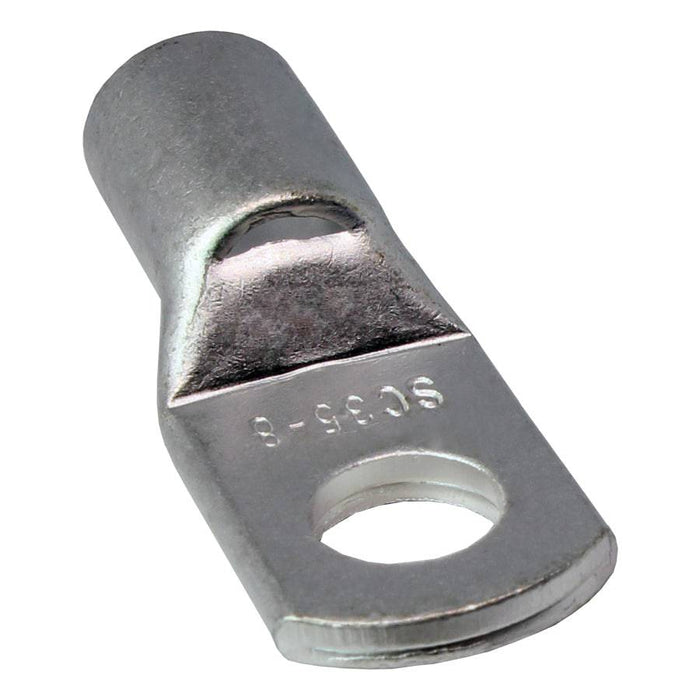

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
F: 14.5mm (0.57")
W: 15.8mm (0.62")
L: 37.0mm (1.46")
D: 10.8mm (0.43")
D1: 8.5mm (0.33")
D2: 8.5mm (0.33")
Terminal Material: Tin-Plated Copper
Insulation Material: None

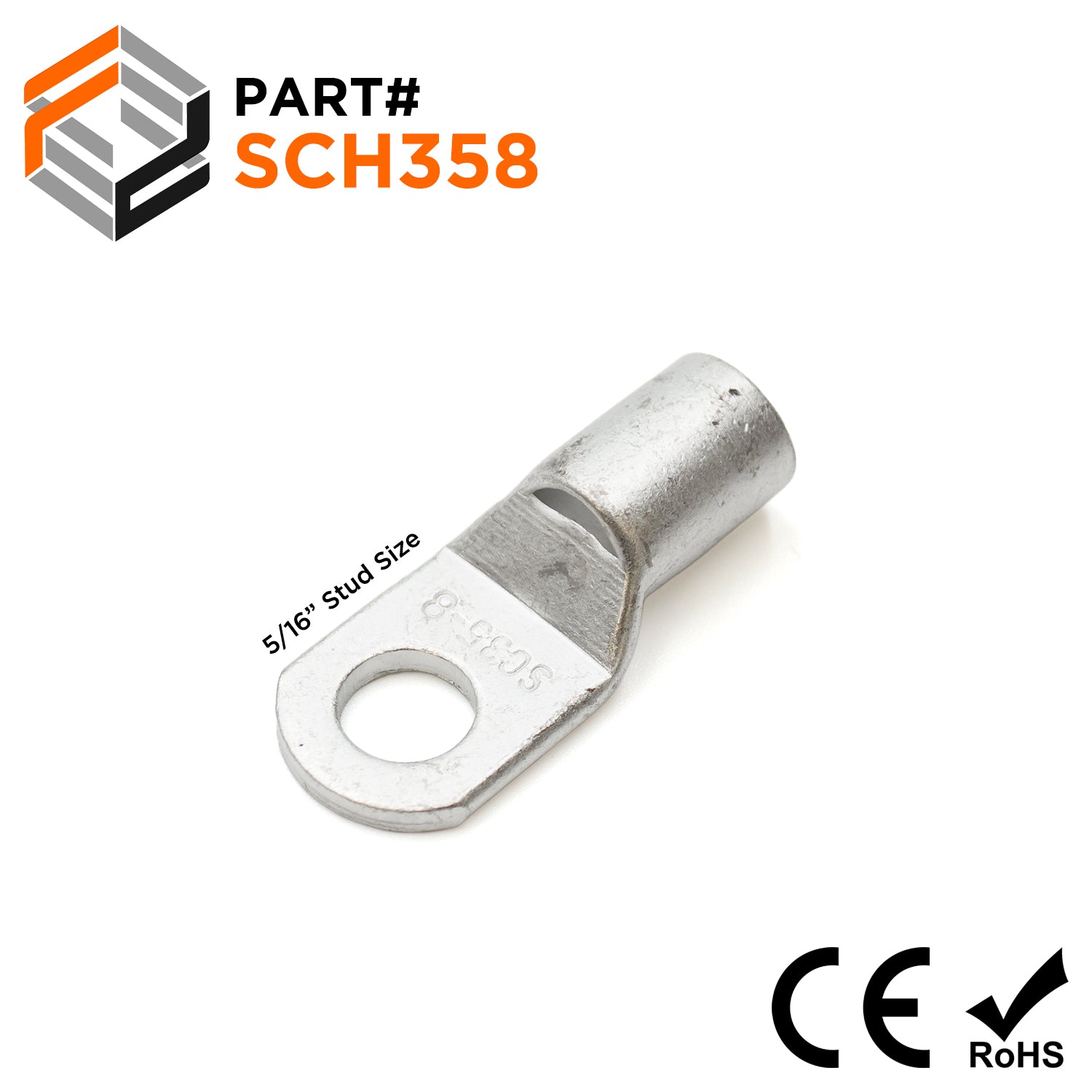

Stud Size: 5/16"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 115 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
