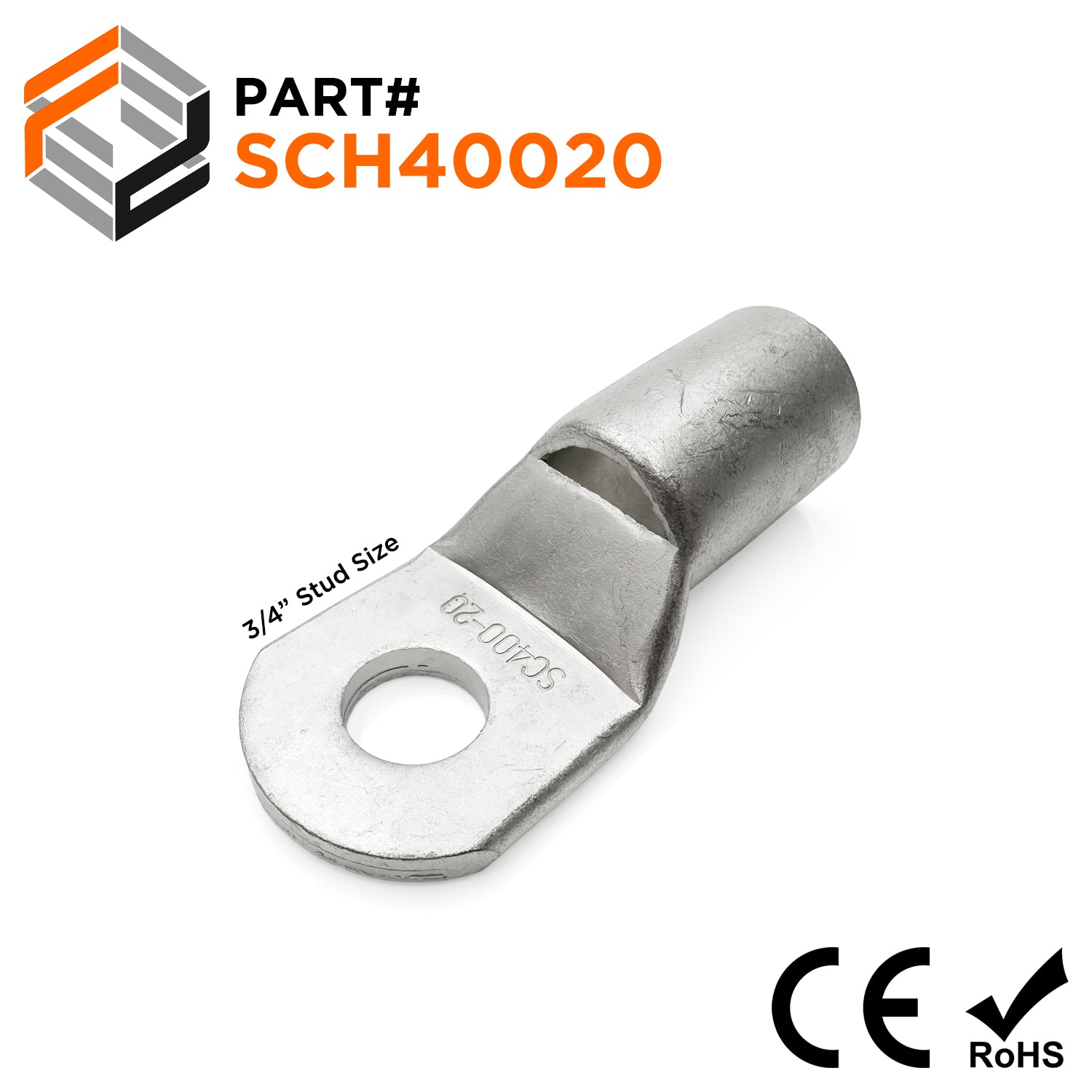

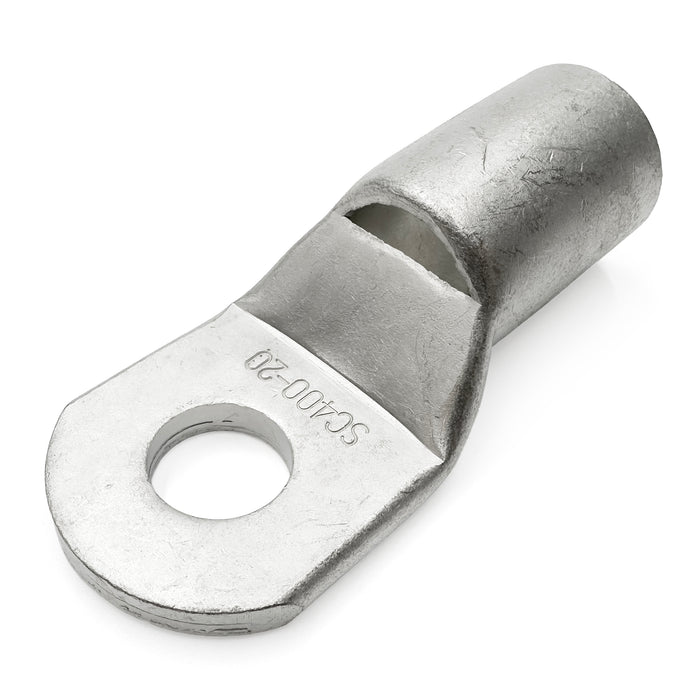

SCH40020 - Non Insulated Tubular Ring Lugs - 789MCM
Precio original
$16.45
-
Precio original
$16.45
Precio original
$16.45
$16.45
-
$16.45
Precio actual
$16.45
SKU SCH40020
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Wire Size: | 789MCM |
F: | 46.0mm (1.81") |
W: | 49.5mm (1.95") |
L: | 110.0mm (4.33") |
D: | 34.0mm (1.34") |
D1: | 27.0mm (1.06") |
D2: | 21.0mm (0.83") |
Terminal Material: | Tin-Plated Copper |
Insulation Material: | None |
Stud Size: | 3/4" |
Temperature Rating: | 75oC |
Voltage Rating: | 600 Volts |
Maximum Amp Ordering: | 475 Amps |
UL Recognized: | No |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
