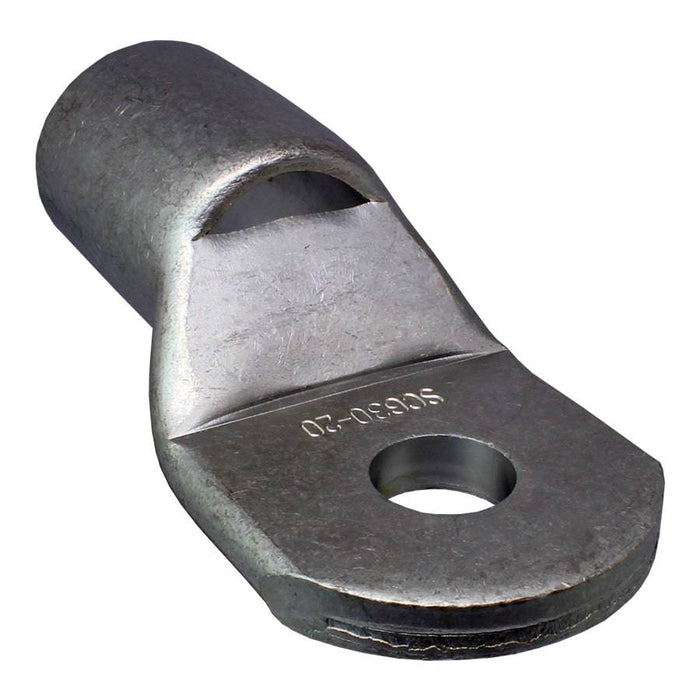

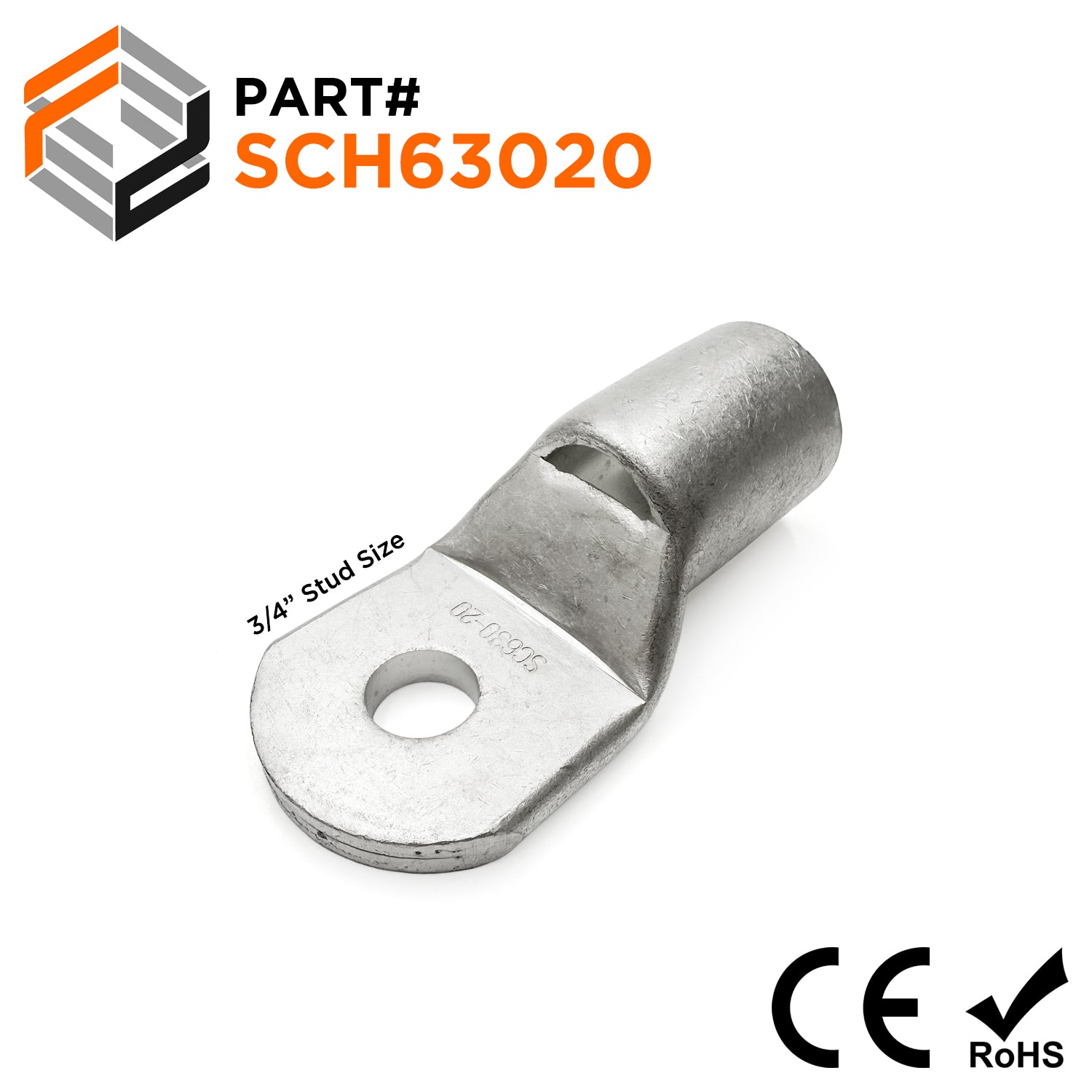

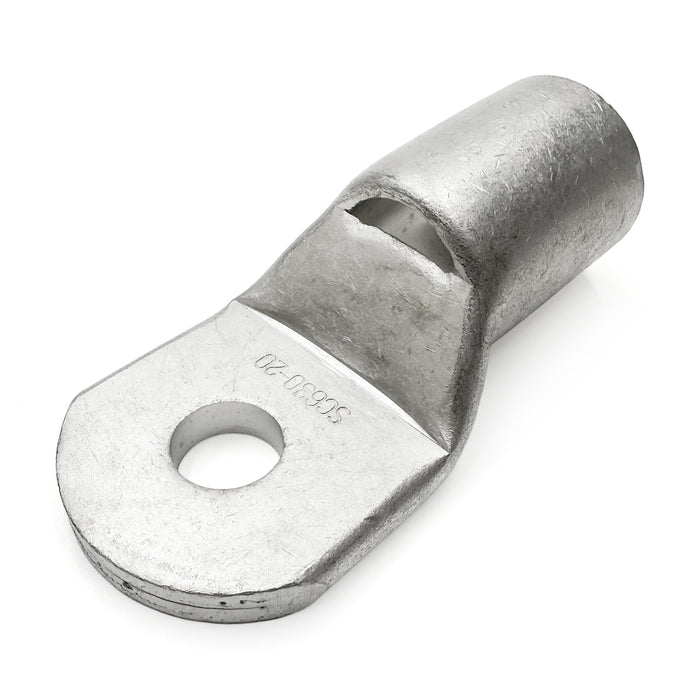

SCH63020 - Non Insulated Tubular Ring Lugs - 1243MCM

Precio original $42.07 - Precio original $42.07
Precio original
$42.07
$42.07 - $42.07
Precio actual $42.07
SKU SCH63020
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1243MCM
F: 56.0mm (2.20")
W: 65.0mm (2.56")
L: 135.0mm (5.31")
D: 45mm (1.77")
D1: 35.0mm (1.38")
D2: 21.0mm (0.83")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 3/4"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 590 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:
