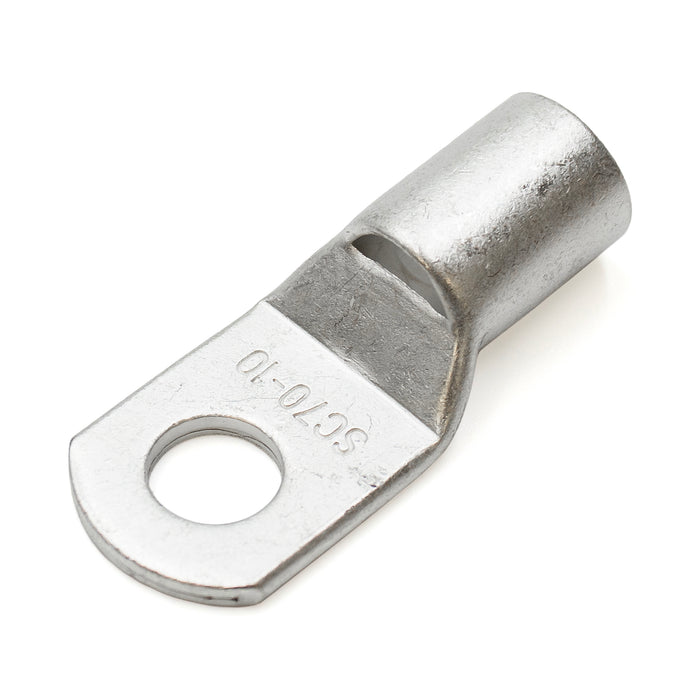

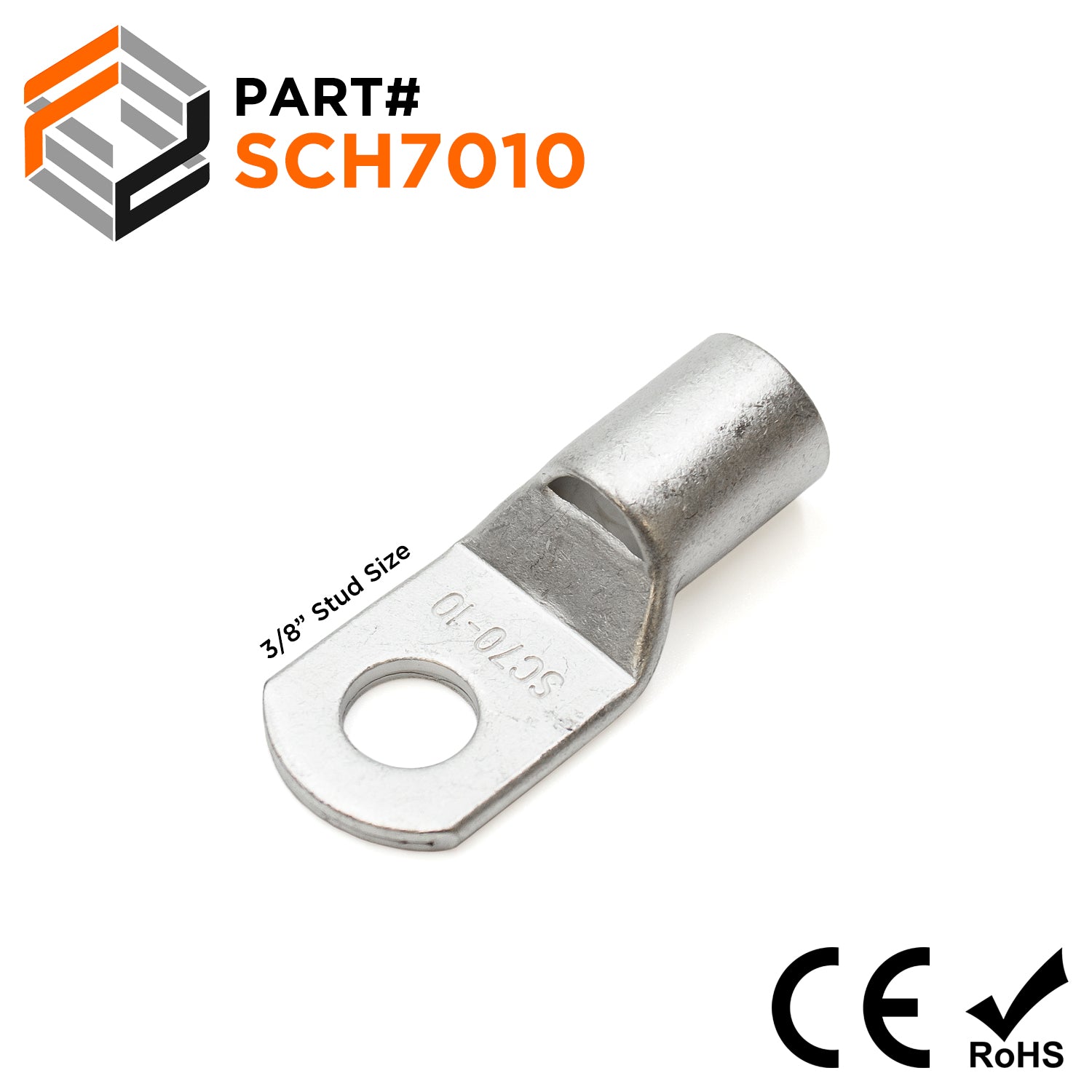

SCH7010 - Non Insulated Tubular Ring Lugs - 2/0 AWG
Precio original
$14.81
-
Precio original
$14.81
Precio original
$14.81
$14.81
-
$14.81
Precio actual
$14.81
SKU SCH7010
Quantity: 10 Pieces
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Size: | 2/0 AWG |
| F: | 19.5mm (0.77") |
| W: | 21.0mm (0.83") |
| L: | 50.0mm (1.97") |
| D: | 14.5mm (0.57") |
| D1: | 11.5mm (0.45") |
| D2: | 10.5mm (0.41") |
| Terminal Material: | Tin-Plated Copper |
| Insulation Material: | None |
| Stud Size: | 3/8" |
| Temperature Rating: | 75oC |
| Voltage Rating: | 600 Volts |
| Maximum Amp Ordering: | 175 Amps |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:
None:
