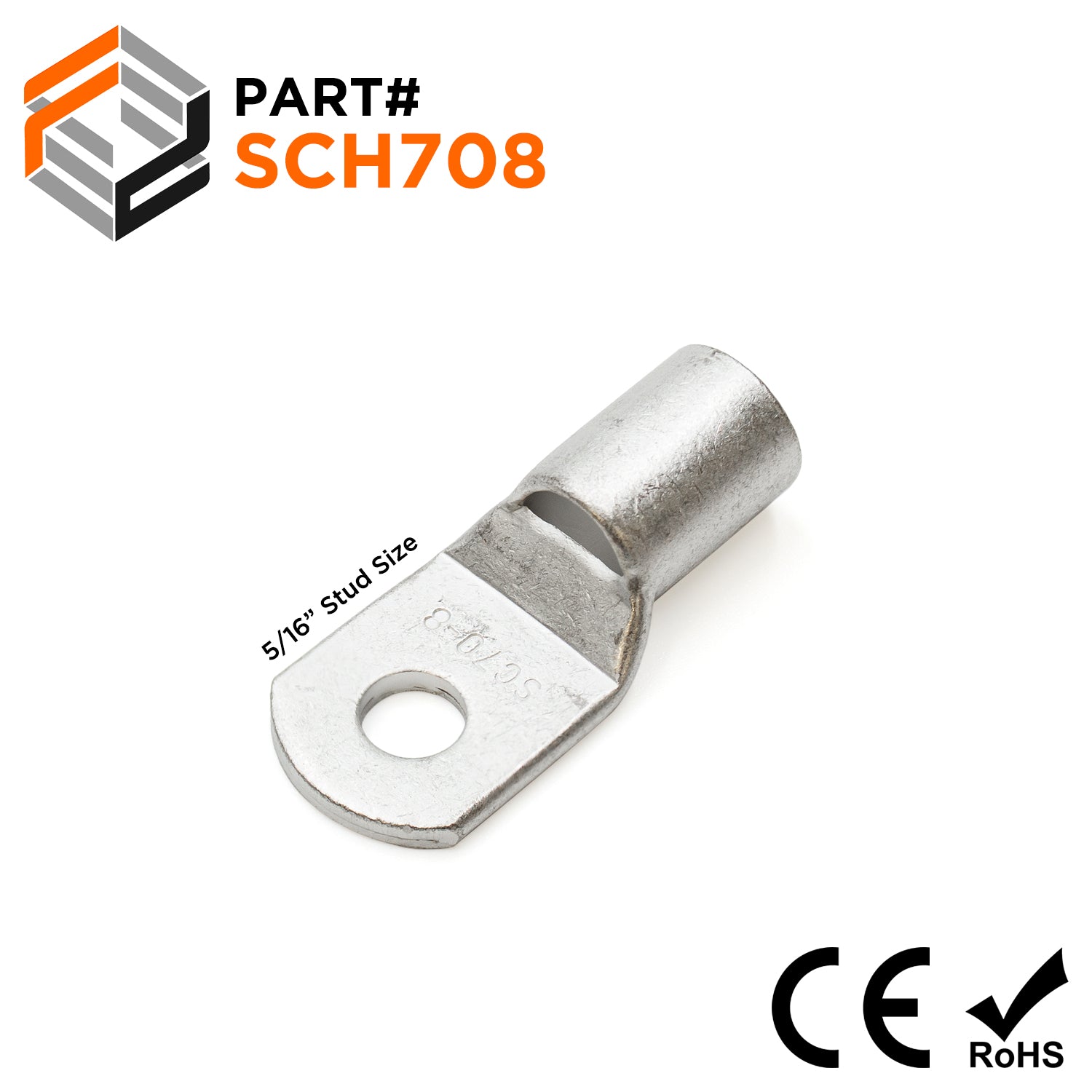

SCH708 - Non Insulated Tubular Ring Lugs - 2/0 AWG

Precio original $14.82 - Precio original $14.82
Precio original
$14.82
$14.82 - $14.82
Precio actual $14.82
SKU SCH708
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 10 Pieces

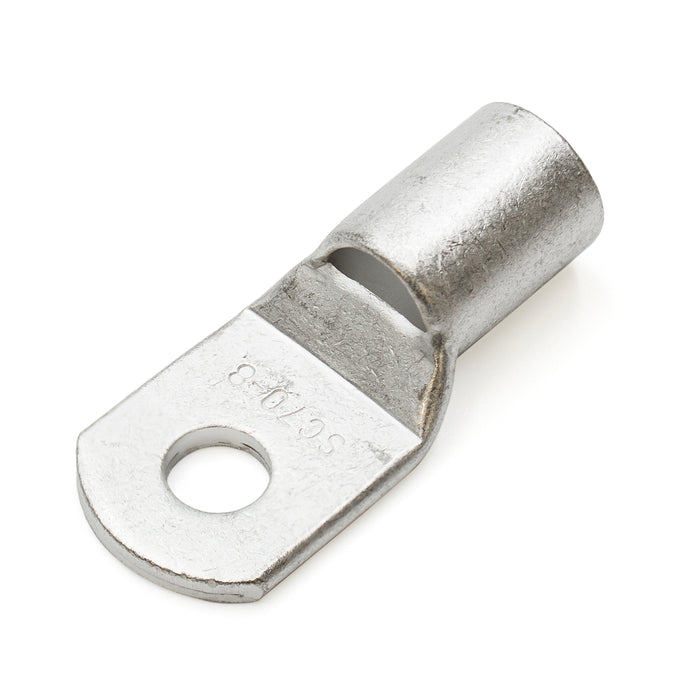

Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion and has a peep/inspection hole to view the copper wire. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2/0 AWG
F: 19.5mm (0.77")
W: 21.0mm (0.83")
L: 48.5mm (1.91")
D: 14.5mm (0.57")
D1: 11.5mm (0.45")
D2: 8.5mm (0.33")
Terminal Material: Tin-Plated Copper
Insulation Material: None
Stud Size: 5/16"
Temperature Rating: 75oC
Voltage Rating: 600 Volts
Maximum Amp Ordering: 175 Amps
UL Recognized: No
CE Certified: Yes
RoHS Compliant: Yes


Product Drawing:


Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
