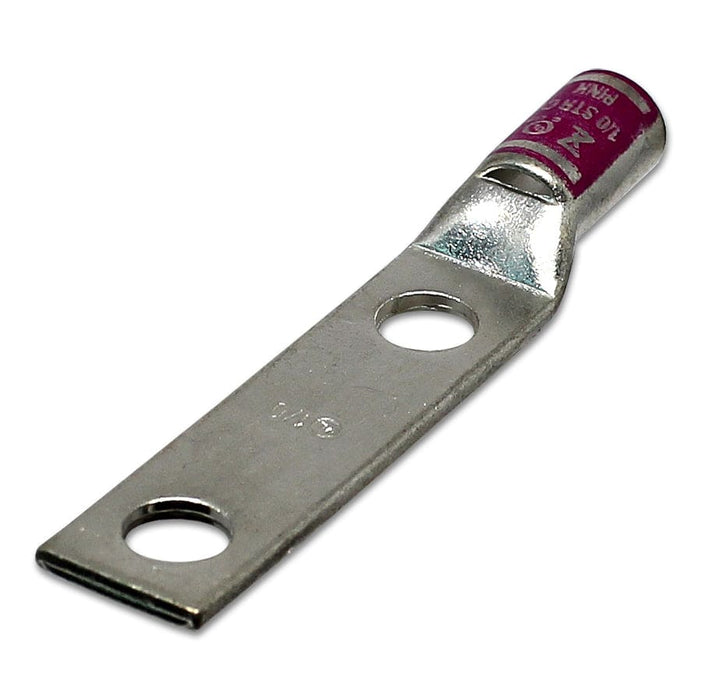

ST10014A - 1/0 AWG Compression Lug - 1/4" Stud Size

Precio original $2.39 - Precio original $2.39
Precio original
$2.39
$2.39 - $2.39
Precio actual $2.39
SKU ST10014A
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1/0 AWG
Color: Pink
L: 64.1mm (2.52")
L1: 37.4mm (1.47")
L2: 19.0mm (0.75")
D: 18.4mm (0.72")
D1: 12.9mm (0.51")
D2: 10.1mm (0.40")
B: 20.3mm (0.80")
E: 7.1mm (0.28")
F: 2.7mm (0.10")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 230A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
