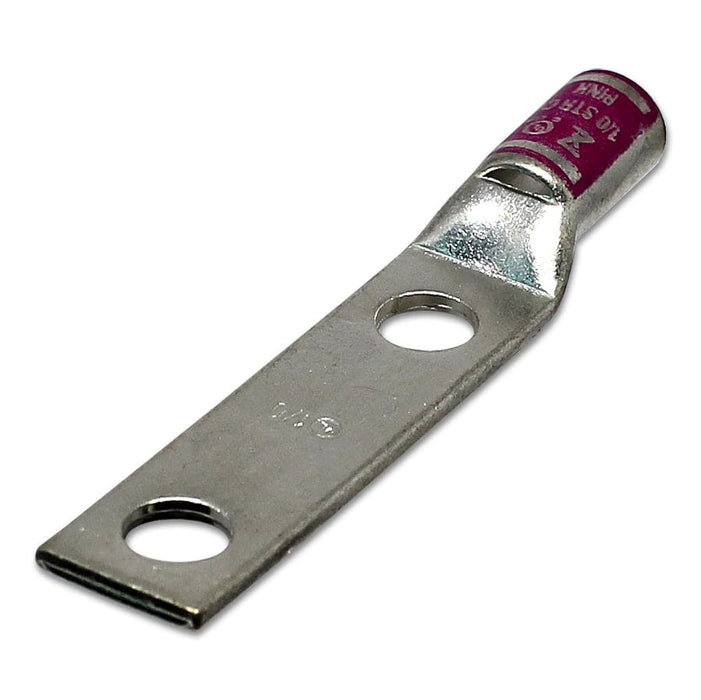

ST10038A - 1/0 AWG Compression Lug - 3/8" Stud Size
Precio original
$3.34
-
Precio original
$3.34
Precio original
$3.34
$3.34
-
$3.34
Precio actual
$3.34
SKU ST10038A
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1/0 AWG |
| Color: | Pink |
| L: | 92.2mm (3.63") |
| L1: | 65mm (2.58") |
| L2: | 44.4mm (1.75") |
| D: | 18.4mm (0.72") |
| D1: | 12.9mm (0.51") |
| D2: | 10.1mm (0.40") |
| B: | 20.3mm (0.80") |
| E: | 10.4mm (0.41") |
| F: | 2.7mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 150 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
