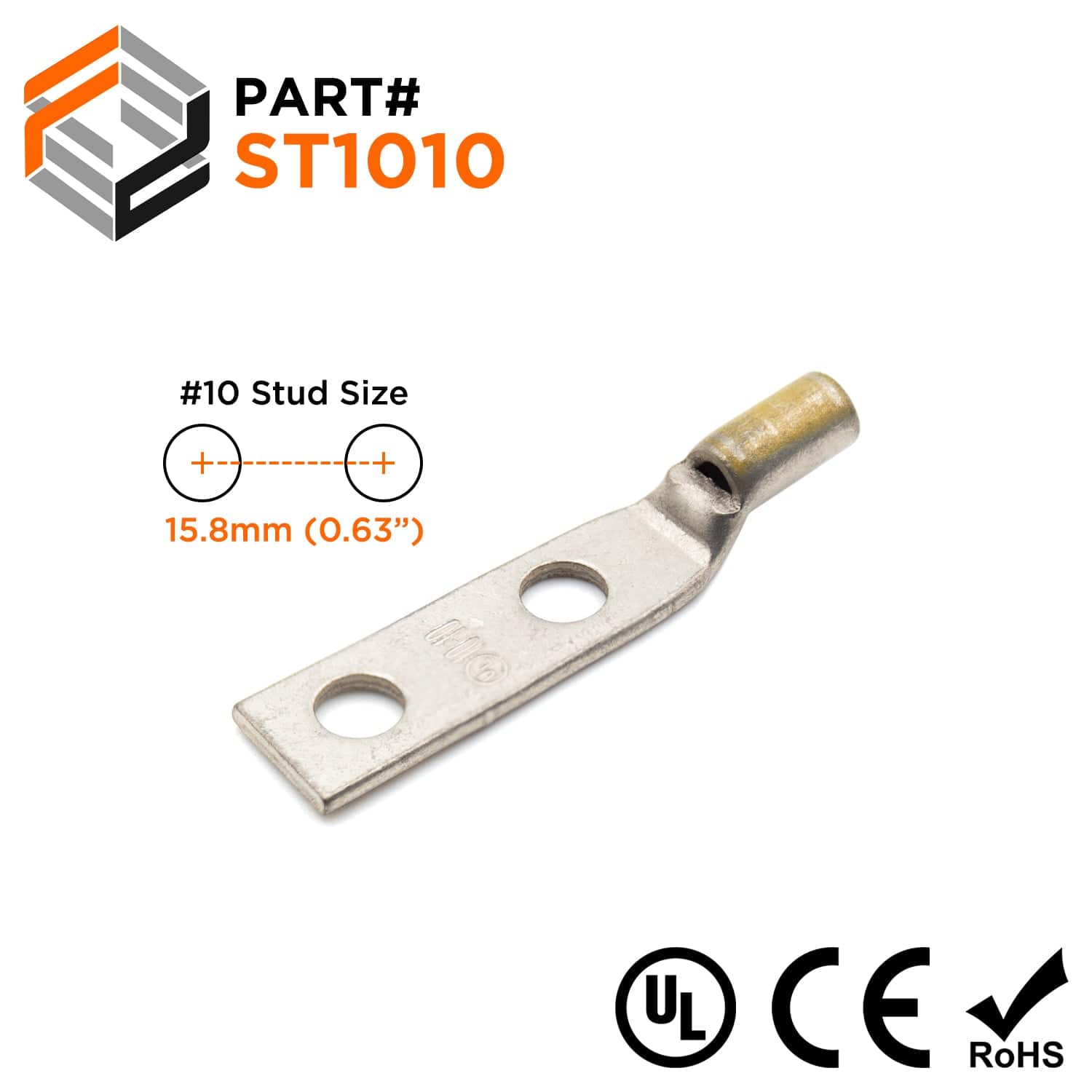

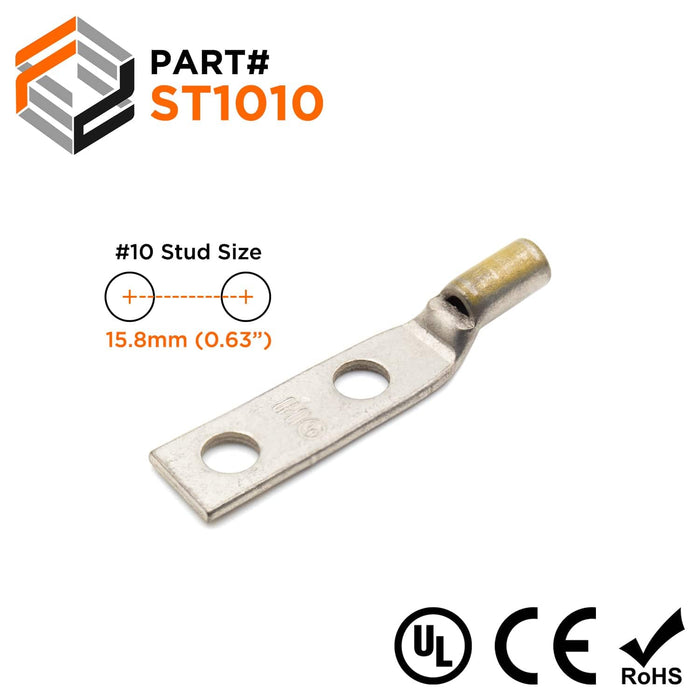

ST1010 - Compression Lug - #10 Stud Size - 10AWG
Precio original
$0.56
-
Precio original
$0.56
Precio original
$0.56
$0.56
-
$0.56
Precio actual
$0.56
SKU ST1010
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 10 AWG |
| Stud Size: | #10 Stud |
| Color: | Yellow |
| L: | 44.5mm (1.75") |
| L1: | 31.1mm (1.20") |
| L2: | 15.8mm (0.63") |
| D: | 8.1mm (0.32") |
| D1: | 5.6mm (0.22") |
| D2: | 3.3mm (0.13") |
| B: | 10.2mm (0.40") |
| E: | 5.6mm (0.22") |
| F: | 1.9mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
