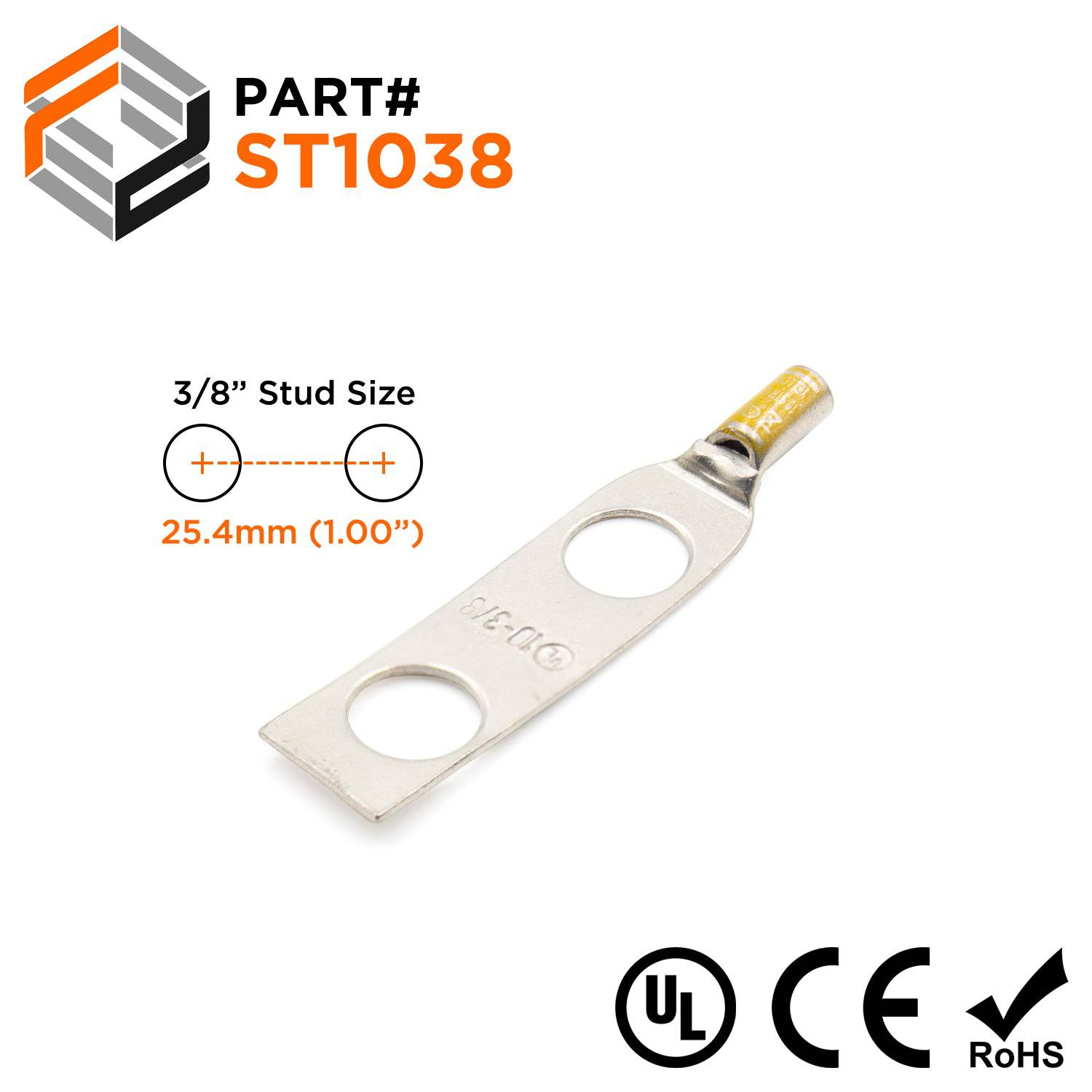

ST1038 - Compression Lug - 3/8" Stud Size
Precio original
$0.71
-
Precio original
$0.71
Precio original
$0.71
$0.71
-
$0.71
Precio actual
$0.71
SKU ST1038
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 10 AWG |
| Stud Size: | 3/8" Stud |
| Color: | Yellow |
| L: | 59.8mm (2.35") |
| L1: | 46.5mm (1.83") |
| L2: | 25.4mm (1.00") |
| D: | 14.7mm (0.58") |
| D1: | 5.6mm (0.22") |
| D2: | 3.3mm (0.13") |
| B: | 10.2mm (0.40") |
| E: | 10.4mm (0.22") |
| F: | 1.0mm (0.04") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 50A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
