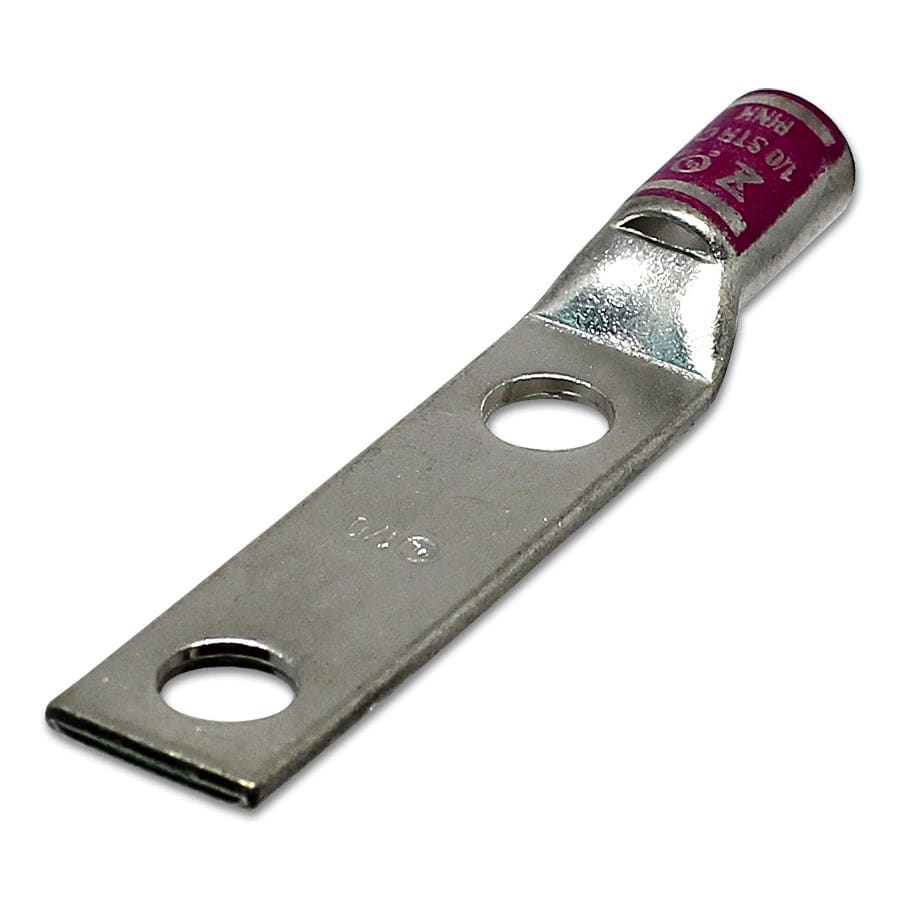

ST100516 - 1/0 AWG Compression Lug - 5/16" Stud Size

Precio original $2.50 - Precio original $2.50
Precio original
$2.50
$2.50 - $2.50
Precio actual $2.50
SKU ST100516
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 1/0 AWG
Color: Pink
L: 68.0mm (2.68")
L1: 41.4mm (1.63")
L2: 22.3mm (0.88")
D: 18.4mm (0.72")
D1: 12.9mm (0.51")
D2: 10.1mm (0.40")
B: 20.3mm (0.80")
E: 8.7mm (0.34")
F: 2.7mm (0.10")
Terminal Material: Tin-Plated Copper
Stud Size: 5/16"
Temperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 150 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
