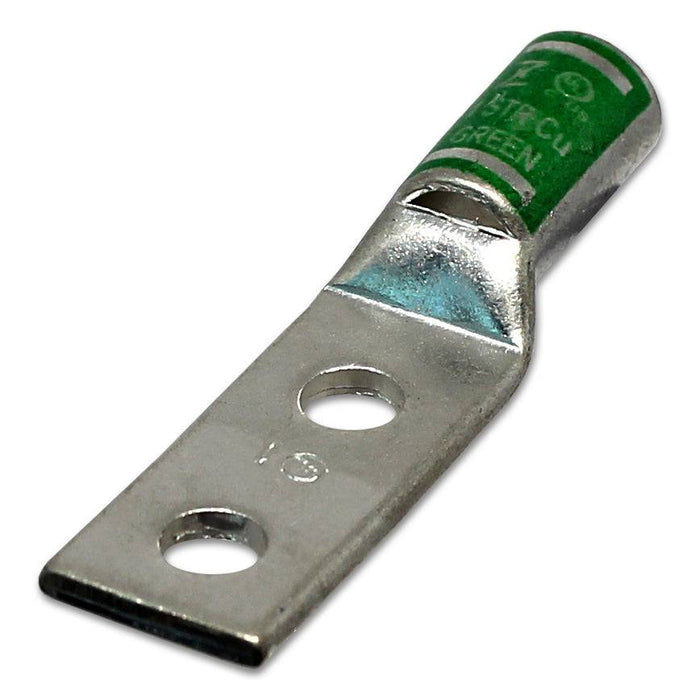

ST112 - Compression Lug - 1/2" Stud Size
Precio original
$2.86
-
Precio original
$2.86
Precio original
$2.86
$2.86
-
$2.86
Precio actual
$2.86
SKU ST112
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/Youtube.jpg?v=1567799776)
Dimensions & Features:
Wire Size: | 1 AWG |
Color: | Green |
L: | 98.0mm (3.86") |
L1: | 73.1mm (2.87") |
L2: | 16.7mm (0.66") |
D: | 16.7mm (0.66") |
D1: | 11.6mm (0.45") |
D2: | 9.1mm (0.36") |
B: | 20.3mm (0.80") |
E: | 12.9mm (0.51") |
F: | 2.5mm (0.10") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 1/2" |
Temperature Rating: | 90oC |
Voltage Rating: | 35KV |
Max Amp Rating: | 85 Amps |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
![](https://cdn.shopify.com/s/files/1/0097/6784/5966/files/ST_Drawing.jpg?v=1588173591)
