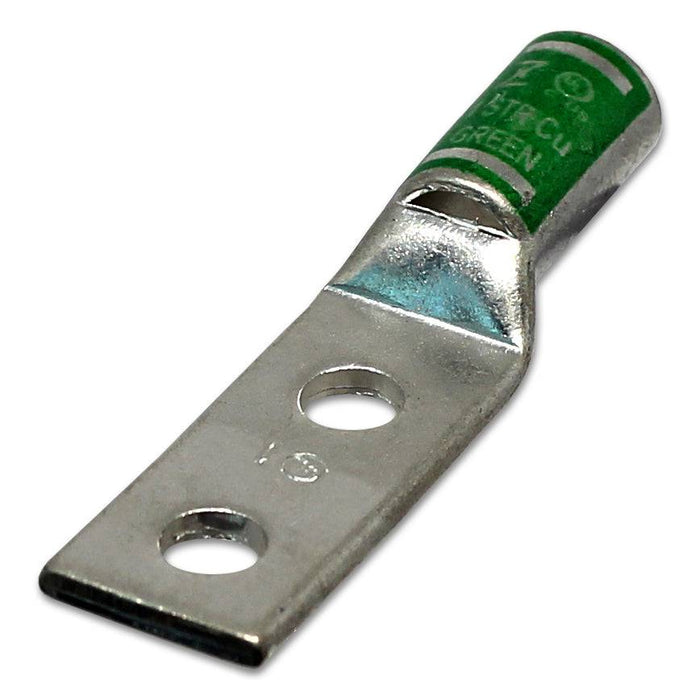

ST138 - 1AWG Compression Lug - 3/8" Stud Size
Precio original
$2.12
-
Precio original
$2.12
Precio original
$2.12
$2.12
-
$2.12
Precio actual
$2.12
SKU ST138
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 1 AWG |
| Color: | Green |
| L: | 71.3mm (2.81") |
| L1: | 46.5mm (1.83") |
| L2: | 25.4mm (1.00") |
| D: | 16.7mm (0.68") |
| D1: | 11.6mm (0.46") |
| D2: | 9.1mm (0.36") |
| B: | 20.3mm (0.80") |
| E: | 10.4mm (0.80") |
| F: | 2.5mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 3/8" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 85 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
