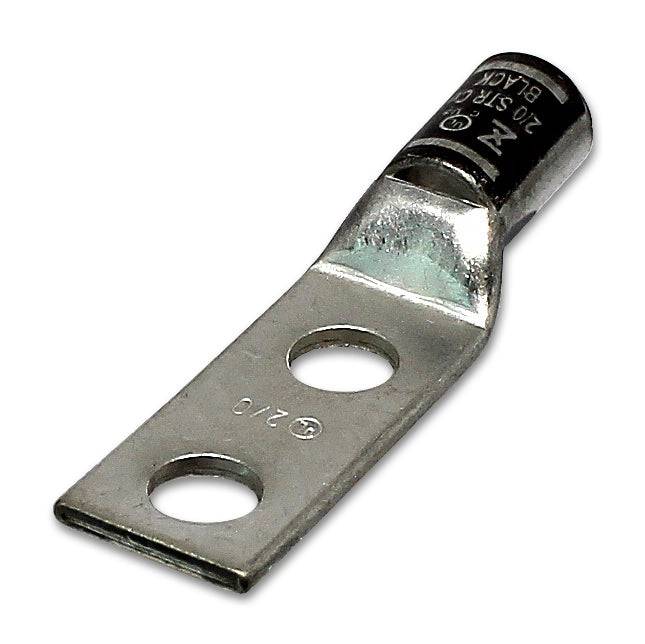

ST2012 - 2/0 AWG Compression Lug - 1/2" Stud Size
Precio original
$3.68
-
Precio original
$3.68
Precio original
$3.68
$3.68
-
$3.68
Precio actual
$3.68
SKU ST2012
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 2/0 AWG |
Color: | Black |
L: | 100.8mm (3.97") |
L1: | 73.1mm (2.88") |
L2: | 44.4mm (1.75") |
D: | 20.8mm (0.82") |
D1: | 14.2mm (0.56") |
D2: | 11.6mm (0.46") |
B: | 21.3mm (0.84") |
E: | 12.9mm (0.51") |
F: | 2.5mm (0.09") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 1/2" |
Temperature Rating: | 90°C |
Voltage Rating: | 35KV |
Max Amp Rating: | 265A |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
