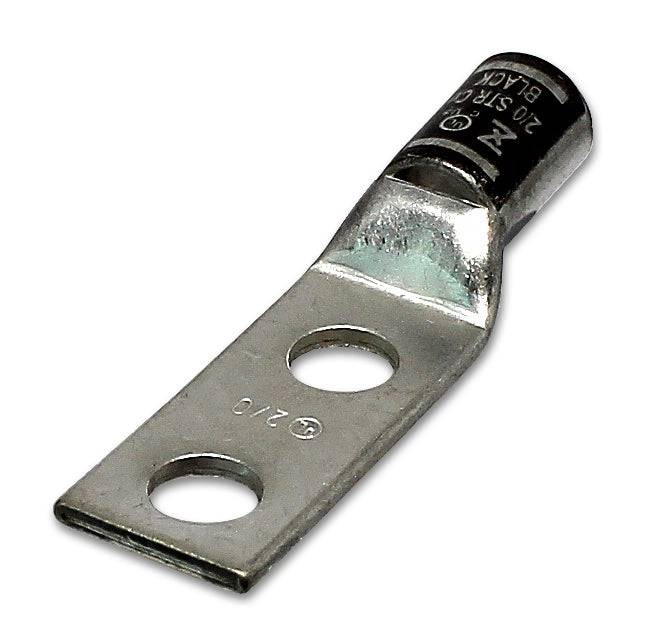

ST2014A - 2/0 AWG Compression Lug - 1/4" Stud Size

Precio original $2.49 - Precio original $2.49
Precio original
$2.49
$2.49 - $2.49
Precio actual $2.49
SKU ST2014A
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2/0 AWG
Color: Black
L: 65.1mm (2.56")
L1: 37.5mm (1.47")
L2: 19.0mm (0.75")
D: 20.8mm (0.82")
D1: 14.2mm (0.56")
D2: 11.6mm (0.46")
B: 21.3mm (0.84")
E: 7.1mm (0.28")
F: 2.5mm (0.09")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 265A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
