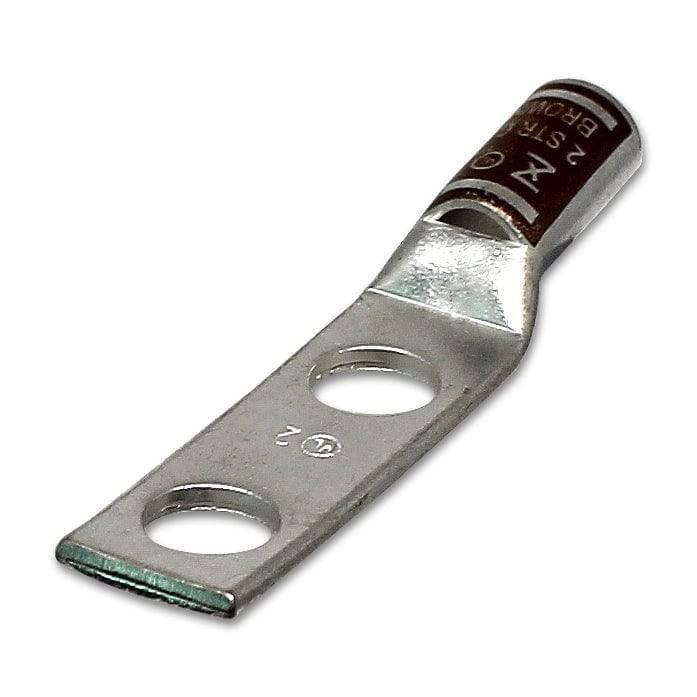

ST214A - 2AWG Compression Lug - 1/4" Stud Size

Precio original $1.52 - Precio original $1.52
Precio original
$1.52
$1.52 - $1.52
Precio actual $1.52
SKU ST214A
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
Color: Brown
L: 60.4mm (2.38")
L1: 35.5mm (1.40")
L2: 19.0mm (0.75")
D: 16.0mm (0.63")
D1: 10.9mm (0.43")
D2: 8.6mm (0.34")
B: 20.3mm (0.80")
E: 7.1mm (0.28")
F: 2.3mm (0.09")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
