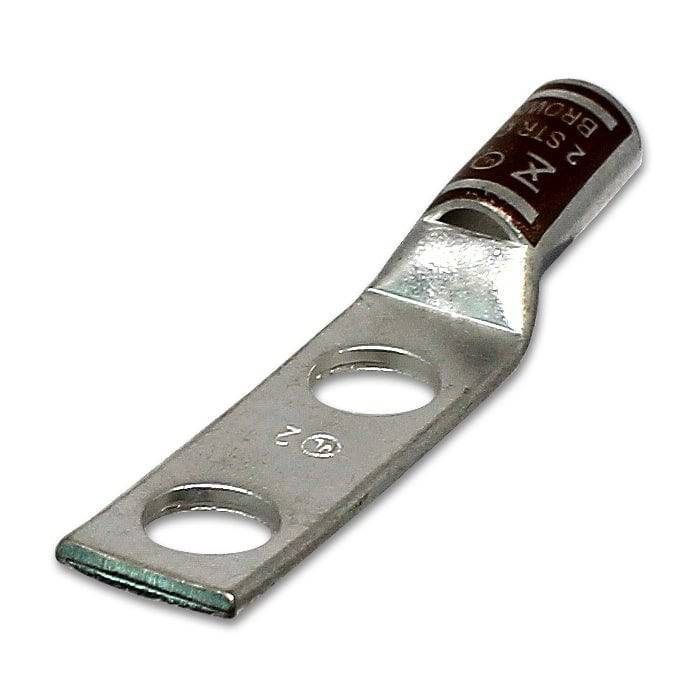

ST238 - 2AWG Compression Lug - 3/8" Stud Size

Precio original $1.73 - Precio original $1.73
Precio original
$1.73
$1.73 - $1.73
Precio actual $1.73
SKU ST238
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
Color: Brown
L: 71.3mm (2.81")
L1: 46.5mm (1.83")
L2: 25.4mm (1.00")
D: 16.0mm (0.63")
D1: 10.9mm (0.43")
D2: 8.6mm (0.34")
B: 20.3mm (0.80")
E: 10.4mm (0.41")
F: 2.3mm (0.10")
Terminal Material: Tin-Plated Copper
Stud Size: 3/8"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:
