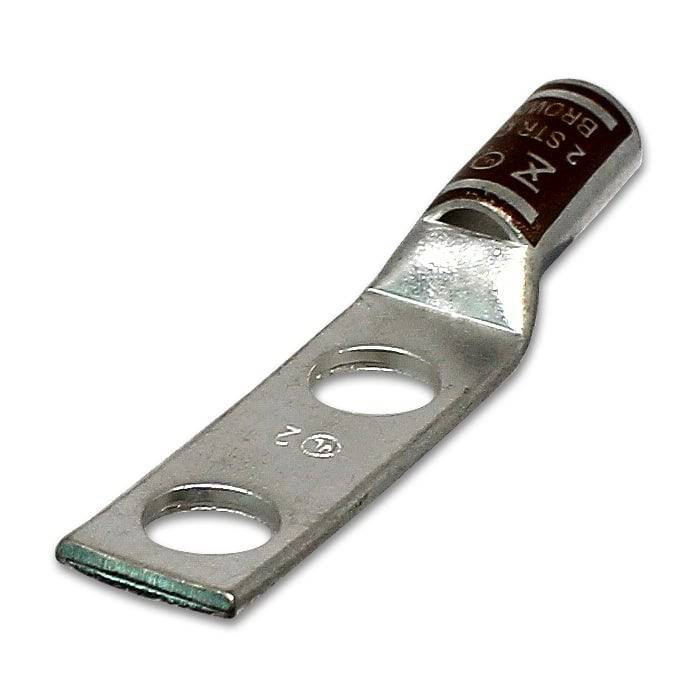

ST238A - 2AWG Compression Lug - 3/8" Stud Size
Precio original
$2.21
-
Precio original
$2.21
Precio original
$2.21
$2.21
-
$2.21
Precio actual
$2.21
SKU ST238A
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
Wire Size: | 2 AWG |
Color: | Brown |
L: | 90.4mm (3.56") |
L1: | 66.5mm (2.58") |
L2: | 44.4mm (1.75") |
D: | 16.0mm (0.63") |
D1: | 10.9mm (0.43") |
D2: | 8.6mm (0.34") |
B: | 20.3mm (0.80") |
E: | 10.4mm (0.41") |
F: | 2.3mm (0.10") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 3/8" |
Temperature Rating: | 90°C |
Voltage Rating: | 35KV |
Max Amp Rating: | 170A |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
