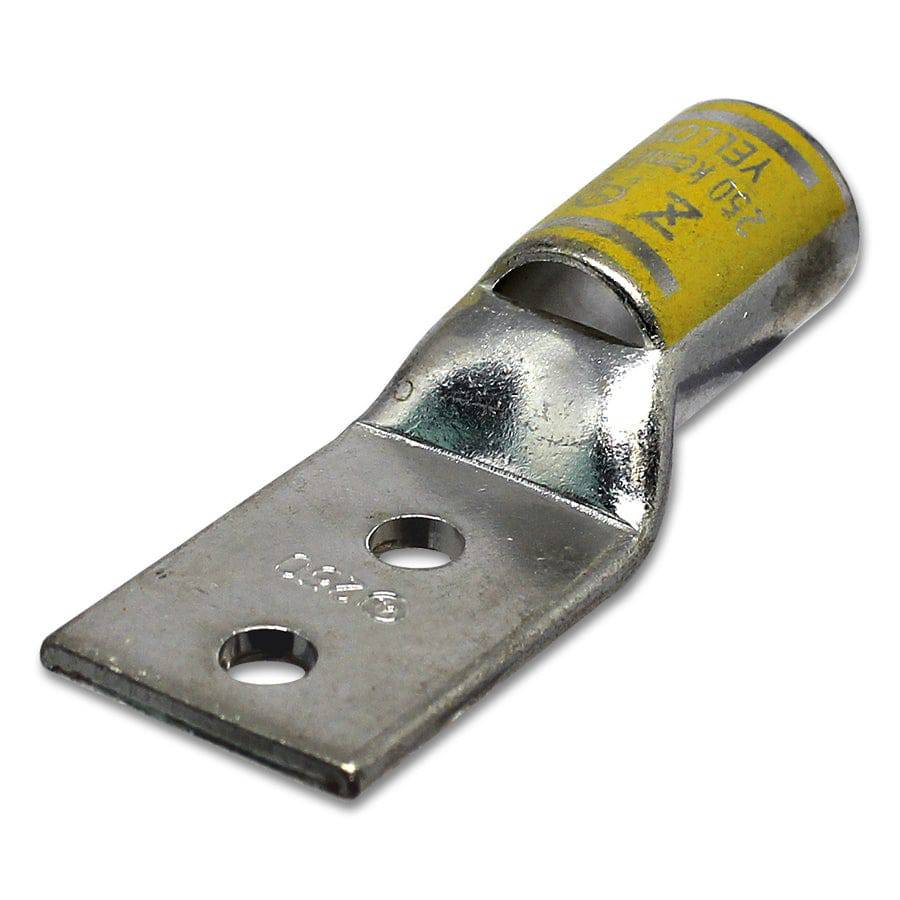

ST25012 - 250MCM Compression Lug - 1/2" Stud Size
Precio original
$6.58
-
Precio original
$6.58
Precio original
$6.58
$6.58
-
$6.58
Precio actual
$6.58
SKU ST25012
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 250MCM |
| Color: | Yellow |
| L: | 109.8mm (4.23") |
| L1: | 73.2mm (2.88") |
| D: | 27.9mm (1.10") |
| D1: | 19.0mm (0.75") |
| D2: | 16.0mm (0.63") |
| B: | 25.4mm (1.00") |
| E: | 12.9mm (0.51") |
| F: | 2.54mm (0.10") |
| L2: | 44.4mm (1.75") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/2" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 405 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
