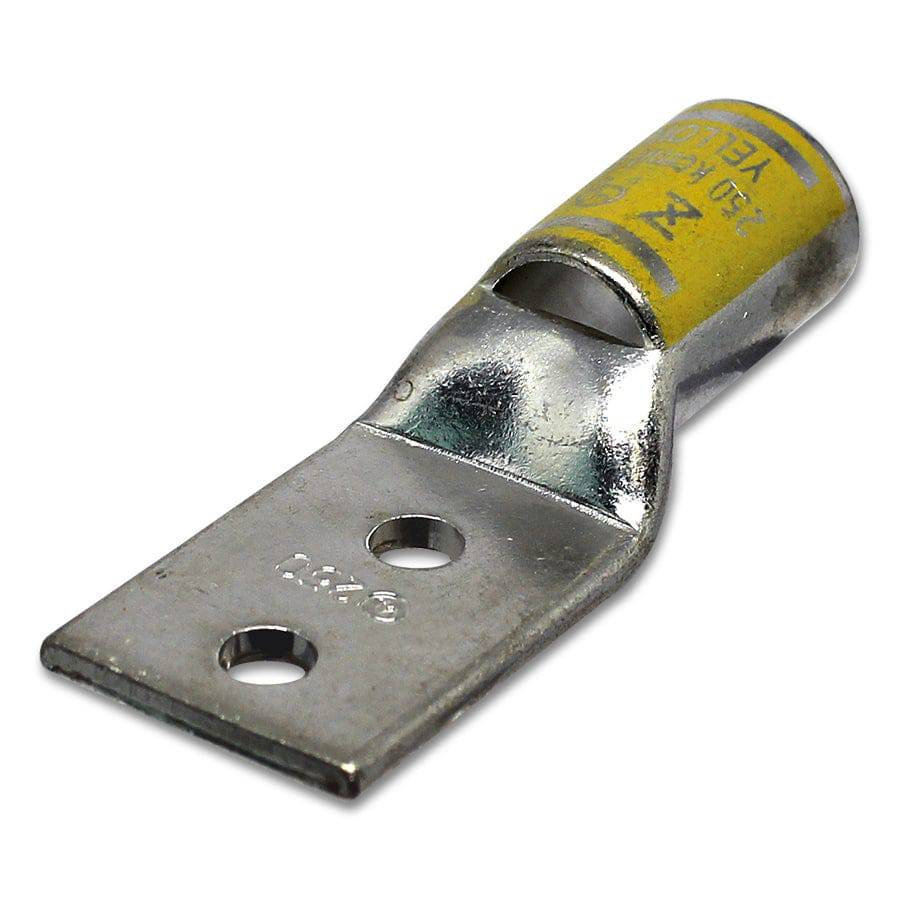

ST25014 - 250MCM Compression Lug - 1/4" Stud Size

Precio original $4.59 - Precio original $4.59
Precio original
$4.59
$4.59 - $4.59
Precio actual $4.59
SKU ST25014
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 250MCM
Color: Yellow
L: 74.3mm (2.93")
L1: 37.5mm (1.47")
D: 27.9mm (1.10")
D1: 19.0mm (0.75")
D2: 16.0mm (0.63")
B: 25.4mm (1.00")
E: 7.1mm (0.28")
F: 2.54mm (0.10")
L2: 19.0mm (0.75")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 405 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
