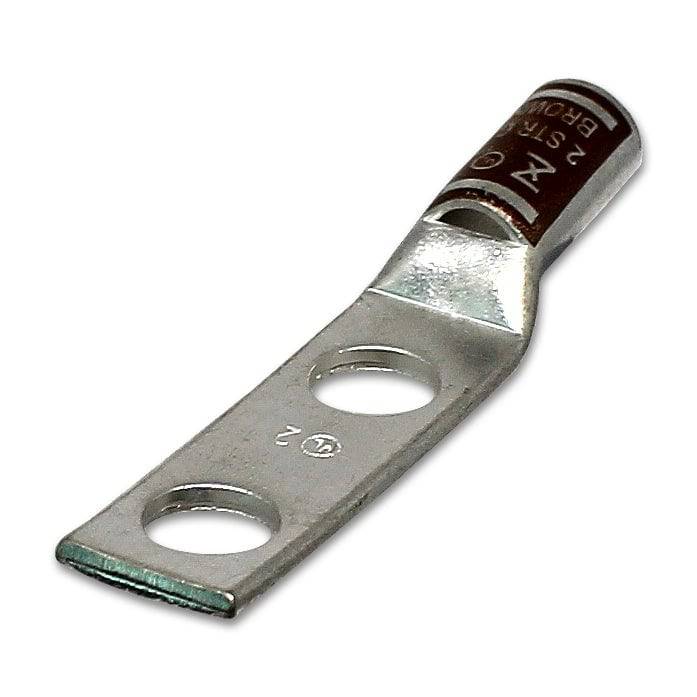

ST2516B - 2AWG Compression Lug - 5/16" Stud Size

Precio original $1.72 - Precio original $1.72
Precio original
$1.72
$1.72 - $1.72
Precio actual $1.72
SKU ST2516B
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 2 AWG
Color: Brown
L: 69.3mm (2.73")
L1: 44.5mm (1.75")
L2: 25.4mm (1.00")
D: 15.9mm (0.63")
D1: 10.8mm (0.43")
D2: 8.5mm (0.34")
B: 20.3mm (0.80")
E: 8.7mm (0.34")
F: 2.1mm (0.08")
Terminal Material: Tin-Plated Copper
Stud Size: 5/16"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
