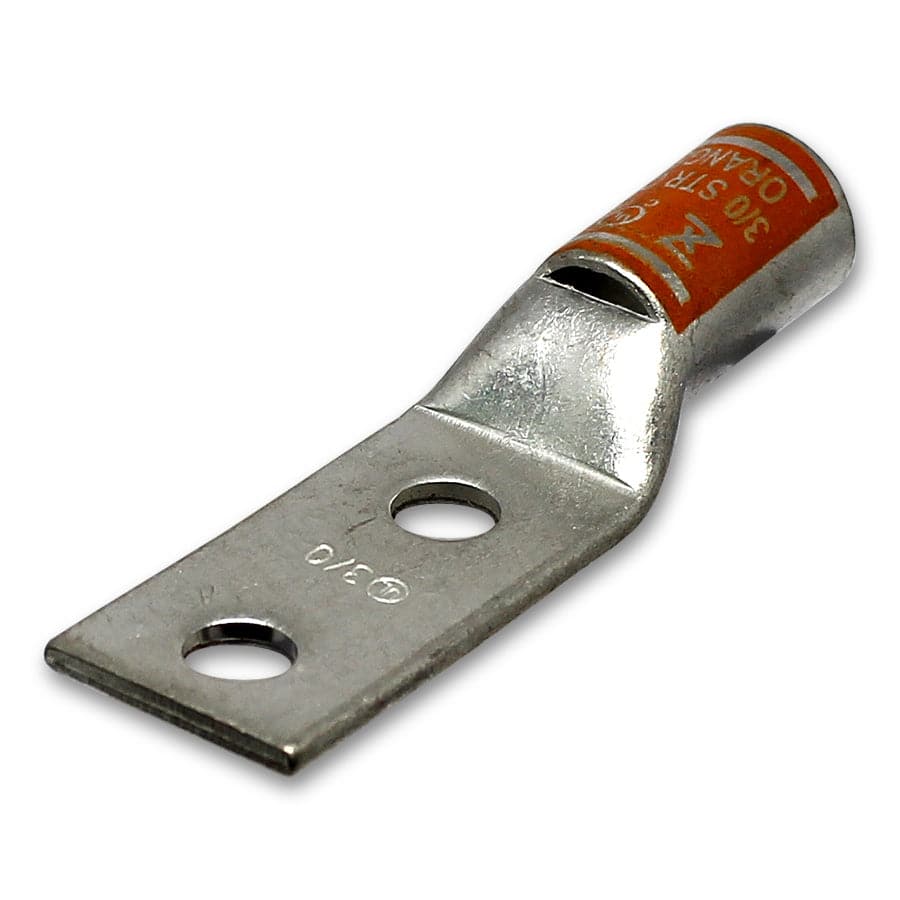

ST3014 - 3/0 AWG Compression Lug - 1/4" Stud Size
Precio original
$3.26
-
Precio original
$3.26
Precio original
$3.26
$3.26
-
$3.26
Precio actual
$3.26
SKU ST3014
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 3/0 AWG |
| Color: | Orange |
| L: | 70.7mm (2.78") |
| L1: | 37.4mm (1.47") |
| L2: | 19.0mm (0.75") |
| D: | 22.9mm (0.90") |
| D1: | 15.7mm (0.62") |
| D2: | 12.9mm (0.51") |
| B: | 24.4mm (0.96") |
| E: | 7.1mm (0.28") |
| F: | 2.7mm (0.10") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/4" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 310A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
Documents
Click to view product spec sheet:
