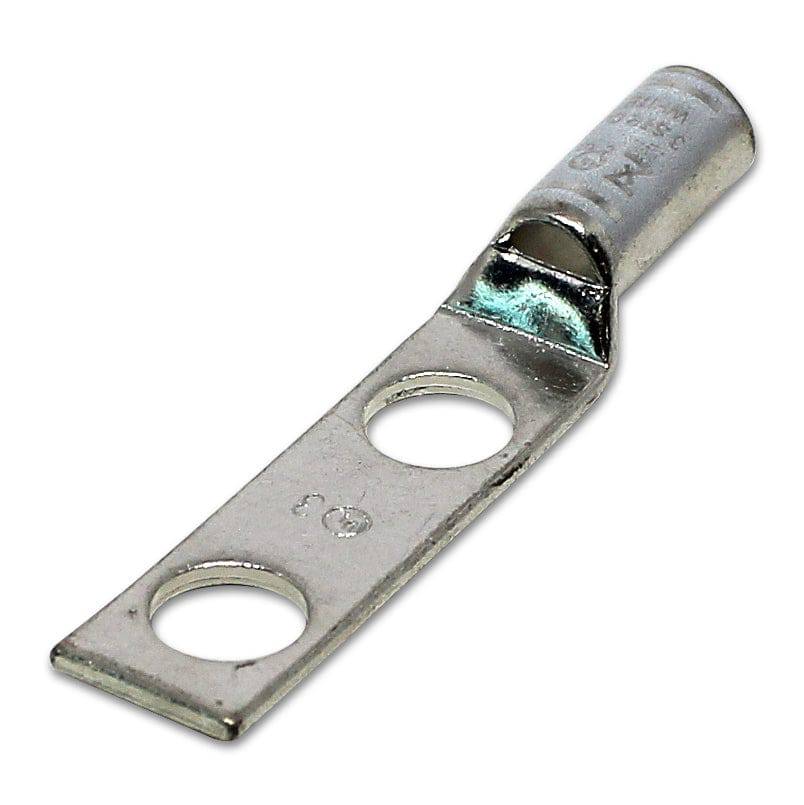

ST338 - 3AWG Compression Lug - 3/8" Stud Size

Precio original $1.43 - Precio original $1.43
Precio original
$1.43
$1.43 - $1.43
Precio actual $1.43
SKU ST338
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 3 AWG
Color: White
L: 70.6mm (2.78")
L1: 46.5mm (1.83")
L2: 25.4mm (1.00")
D: 14.5mm (0.57")
D1: 9.9mm (0.39")
D2: 7.8mm (0.31")
B: 20.3mm (0.80")
E: 10.4mm (0.41")
F: 2.3mm (0.08")
Terminal Material: Tin-Plated Copper
Stud Size: 3/8"
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 170A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
