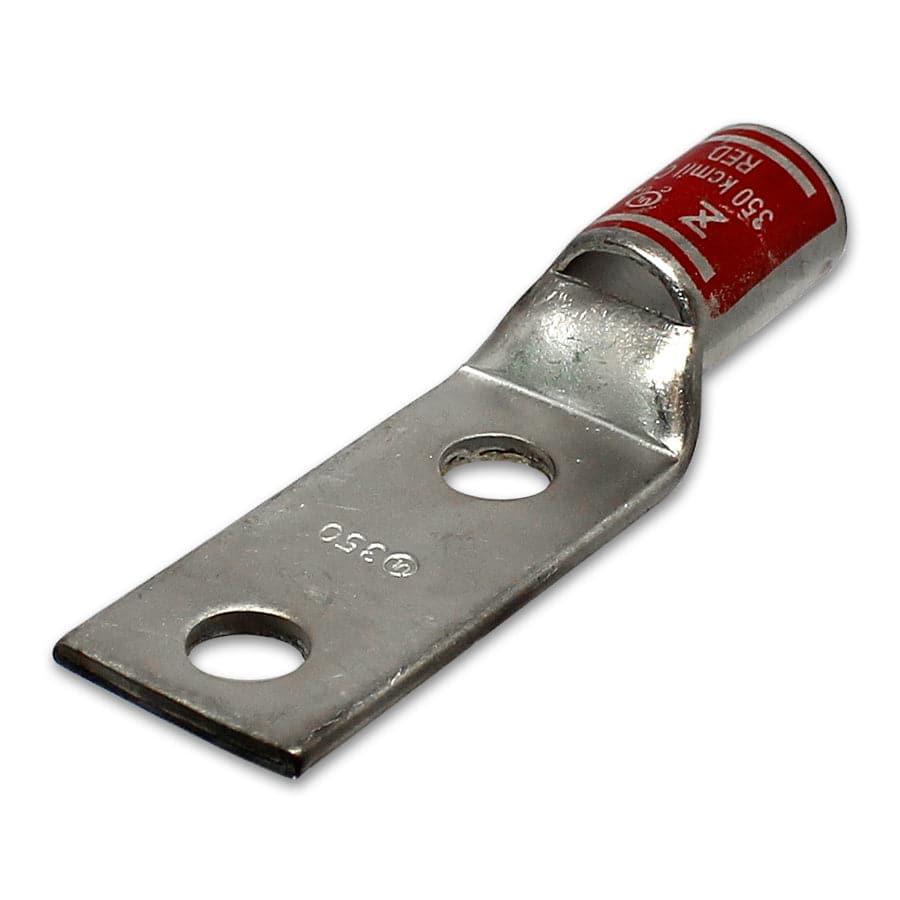

ST35012 - 350MCM Compression Lug - 1/2" Stud Size
Precio original
$9.40
-
Precio original
$9.40
Precio original
$9.40
$9.40
-
$9.40
Precio actual
$9.40
SKU ST35012
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
| Wire Size: | 350MCM |
| Color: | Red |
| L: | 103.1mm (4.06") |
| L1: | 71.1mm (2.80") |
| D: | 32.5mm (1.28") |
| D1: | 22.3mm (0.88") |
| D2: | 18.2mm (0.72") |
| B: | 32.0mm (1.26") |
| E: | 12.9mm (0.51") |
| F: | 39.6mm (1.56") |
| L2: | 44.4mm (1.75") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 1/2" |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 505A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:
