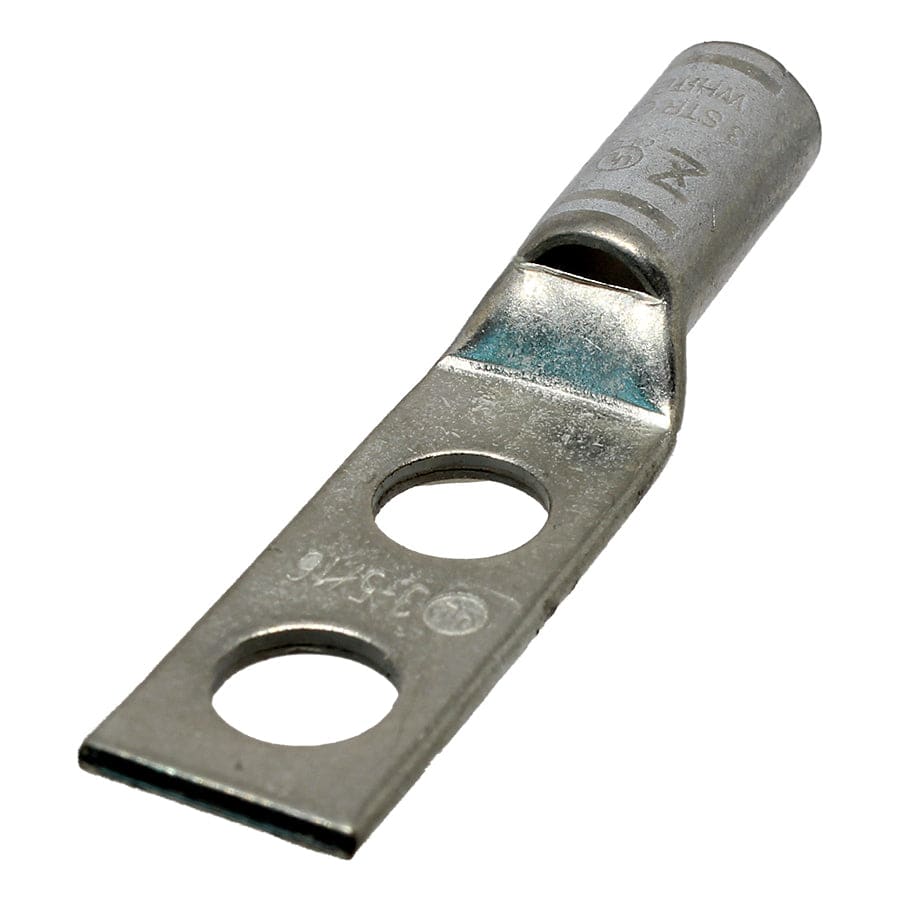

ST3516 - 3AWG Compression Lug - 5/16" Stud Size
Precio original
$1.22
-
Precio original
$1.22
Precio original
$1.22
$1.22
-
$1.22
Precio actual
$1.22
SKU ST3516
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None
Dimensions & Features:
Wire Size: | 3 AWG |
Color: | White |
L: | 59.2mm (2.33") |
L1: | 35.0mm (1.38") |
L2: | 16.0mm (0.63") |
D: | 14.5mm (0.57") |
D1: | 9.9mm (0.39") |
D2: | 7.8mm (0.31") |
B: | 20.3mm (0.80") |
E: | 10.4mm (0.41") |
F: | 2.0mm (0.08") |
Terminal Material: | Tin-Plated Copper |
Stud Size: | 5/16" |
Temperature Rating: | 90°C |
Voltage Rating: | 35KV |
Max Amp Rating: | 170A |
UL Recognized: | Yes |
CE Certified: | Yes |
RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
