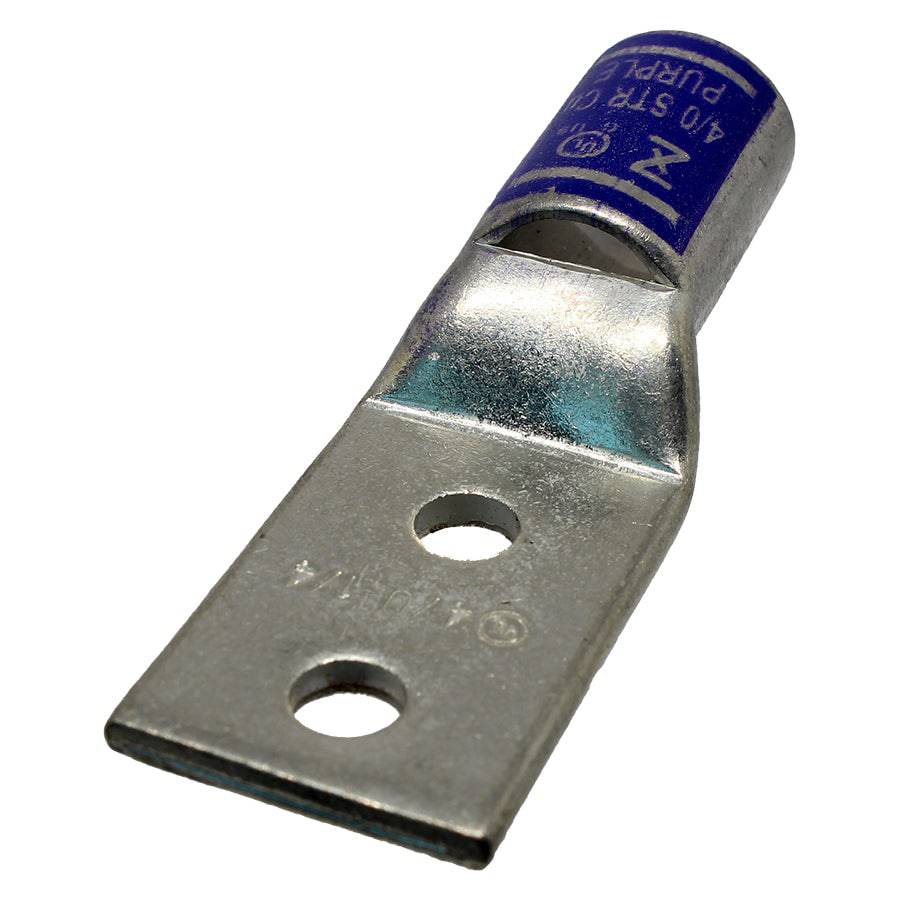

ST4014 - 4/0 AWG Compression Lug - 1/4" Stud Size

Precio original $4.12 - Precio original $4.12
Precio original
$4.12
$4.12 - $4.12
Precio actual $4.12
SKU ST4014
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4/0 AWG
Color: Purple
L: 71.8mm (2.82")
L1: 37.4mm (1.47")
L2: 19.1mm (0.75")
D: 25.4mm (1.00")
D1: 17.4mm (0.56")
D2: 14.2mm (0.56")
B: 25.4mm (1.00")
E: 7.1mm (0.28")
F: 3.1mm (0.12")
Terminal Material: Tin-Plated Copper
Stud Size: 1/4"
Termperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 130 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
