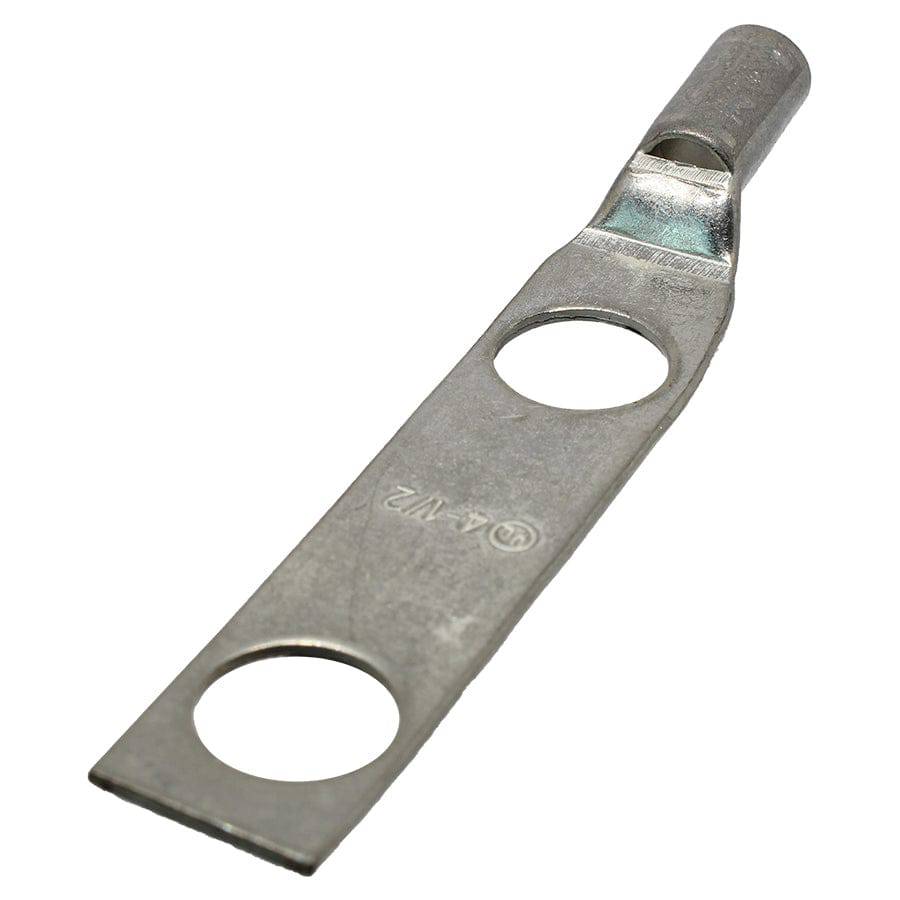

ST412 - 4AWG Compression Lug - 1/2" Stud Size

Precio original $1.74 - Precio original $1.74
Precio original
$1.74
$1.74 - $1.74
Precio actual $1.74
SKU ST412
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
true
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 4 AWG
Color: Gray
L: 94.5mm (3.72")
L1: 73.1mm (2.88")
L2: 44.4m (1.75")
D: 17.8mm (0.70")
D1: 9.1mm (0.36")
D2: 7.1mm (0.28")
B: 17.5mm (0.69")
E: 12.9mm (0.51")
F: 1.4mm (0.57")
Terminal Material: Tin-Plated Copper
Stud Size: 1/2"
Temperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 85 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
