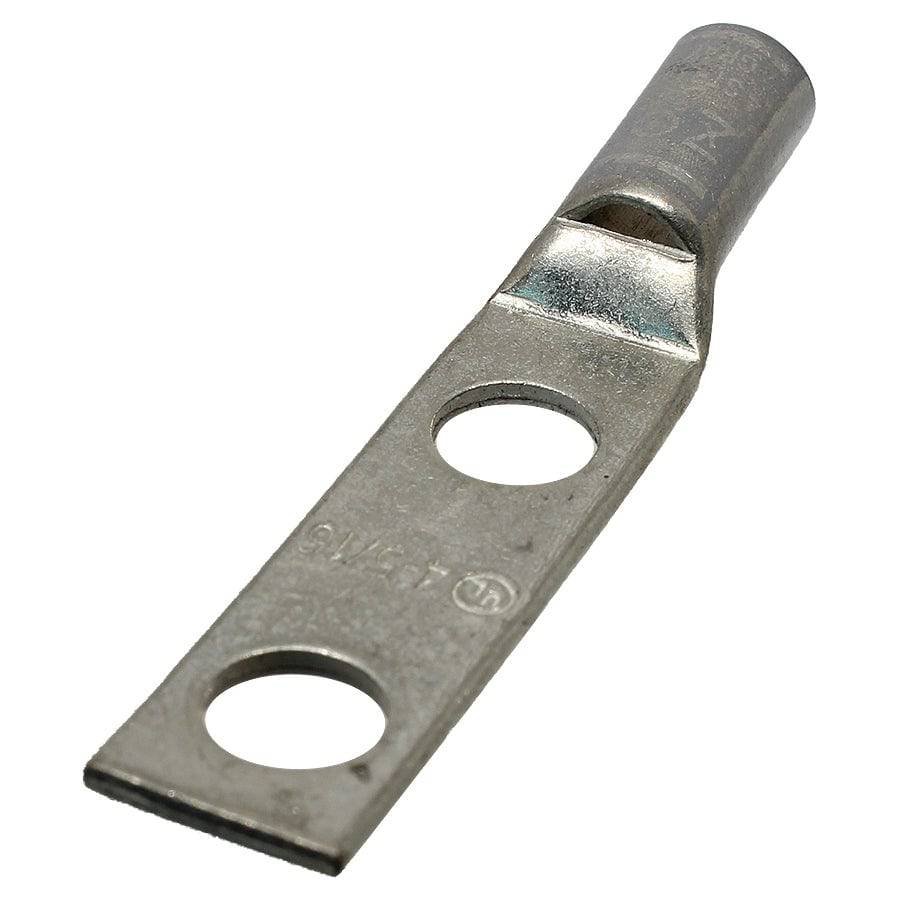

ST4516 - 4AWG Compression Lug - 5/16" Stud Size
Precio original
$1.25
-
Precio original
$1.25
Precio original
$1.25
$1.25
-
$1.25
Precio actual
$1.25
SKU ST4516
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 4 AWG |
| Color: | Gray |
| L: | 65.7mm (2.59") |
| L1: | 44.4mm (1.75") |
| L2: | 25.4mm (1.00") |
| D: | 13.7mm (0.54") |
| D1: | 9.1mm (0.36") |
| D2: | 7.1mm (0.28") |
| B: | 17.5mm (0.69") |
| E: | 8.7mm (0.34") |
| F: | 1.8mm (0.07") |
| Terminal Material: | Tin-Plated Copper |
| Stud Size: | 5/16" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 85 Amps |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
