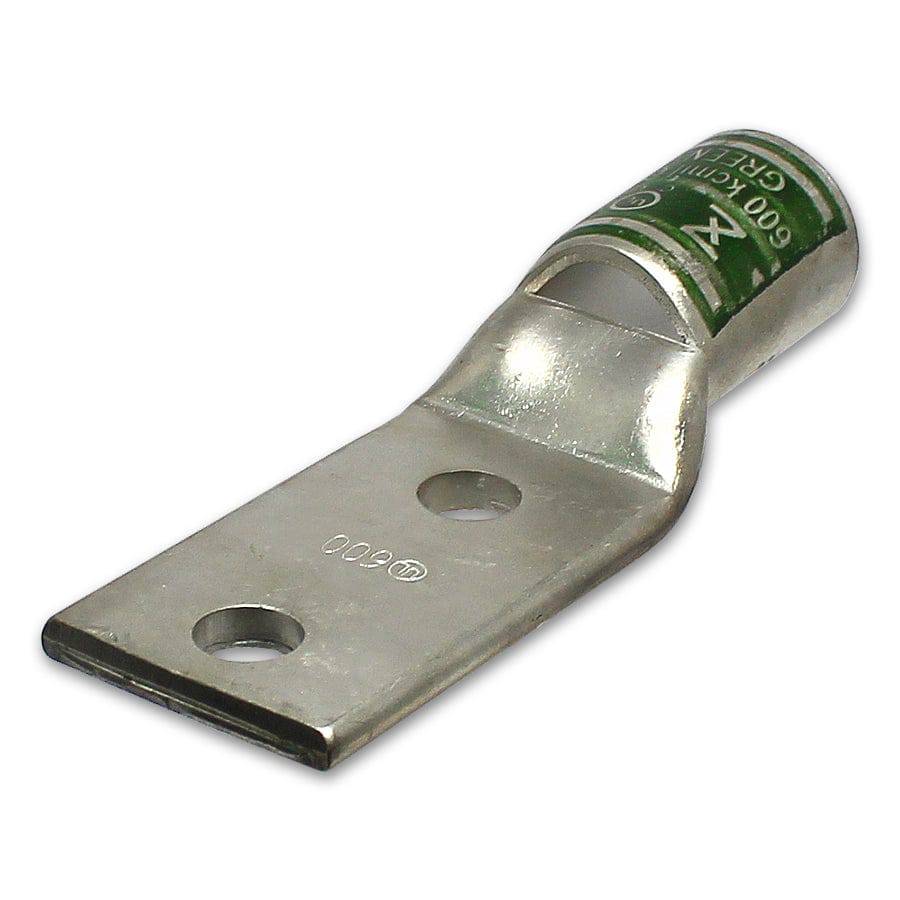

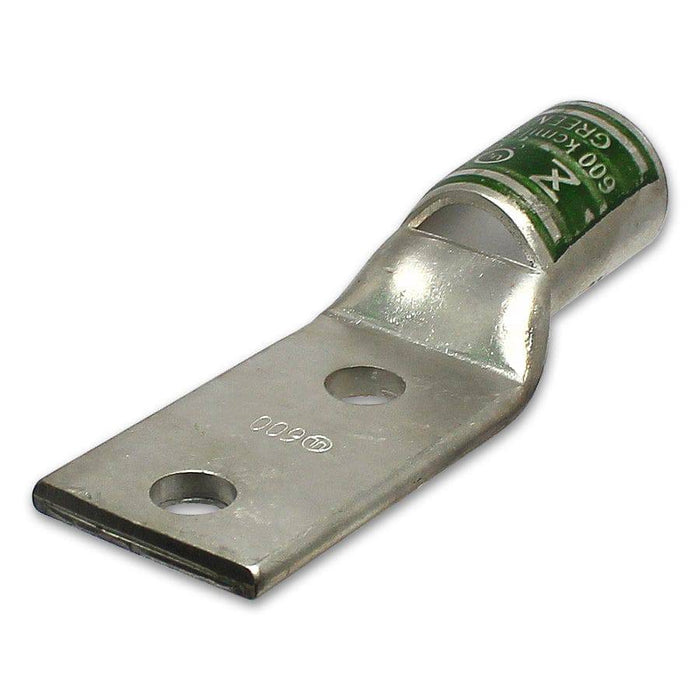

ST60012 - 600MCM Compression Lug - 1/2" Stud Size

Precio original $20.61 - Precio original $20.61
Precio original
$20.61
$20.61 - $20.61
Precio actual $20.61
SKU ST60012
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 600MCM
Color: Green
L: 110.5mm (4.35")
L1: 71.1mm (2.80")
D: 43.6mm (1.72")
D1: 30.1mm (1.18")
D2: 24.0mm (0.95")
B: 39.3mm (1.55")
E: 12.9mm (0.51")
F: 6.0mm (0.24")
L2: 44.4mm (1.75")
Terminal Material: Tin-Plated Copper
Stud Size: 1/2"
Termperature Rating: 90oC
Voltage Rating: 35KV
Max Amp Rating: 420 Amps
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:

None:

Documents

Click to view product spec sheet:
