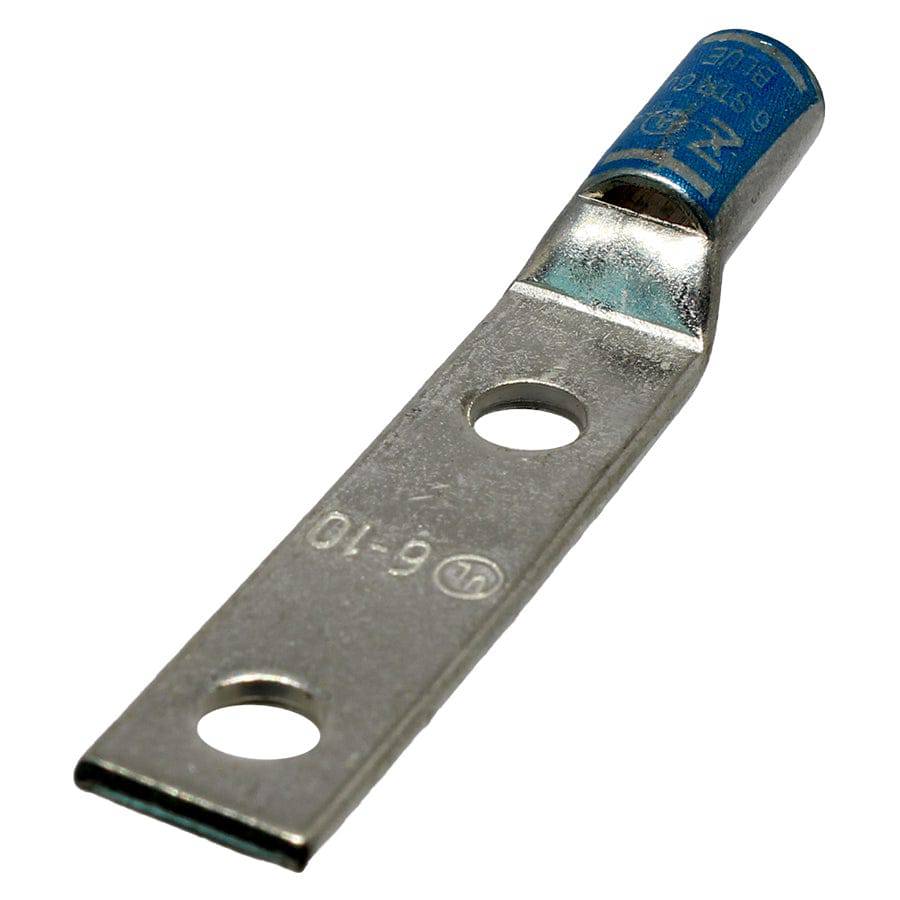

ST610C - 6 AWG Compression Lug - #10 Stud Size

Precio original $0.98 - Precio original $0.98
Precio original
$0.98
$0.98 - $0.98
Precio actual $0.98
SKU ST610C
Disponibilidad:
en stock, listo para ser enviado
Piece Quantity: 1 Piece
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.

Dimensions & Features:

Wire Size: 6 AWG
Stud Size: #10 Stud
Color: Blue
L: 57.5mm (2.27")
L1: 40.6mm (1.60")
L2: 25.4mm (1.00")
D: 11.4mm (0.45")
D1: 7.92mm (0.31")
D2: 5.89mm (0.23")
B: 13.7mm (0.54")
E: 5.58mm (0.22")
F: 1.93mm (0.08")
Terminal Material: Tin-Plated Copper
Temperature Rating: 90°C
Voltage Rating: 35KV
Max Amp Rating: 65A
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:

Cross References

Cross Reference Parts:
None

Documents

Click to view product spec sheet:
