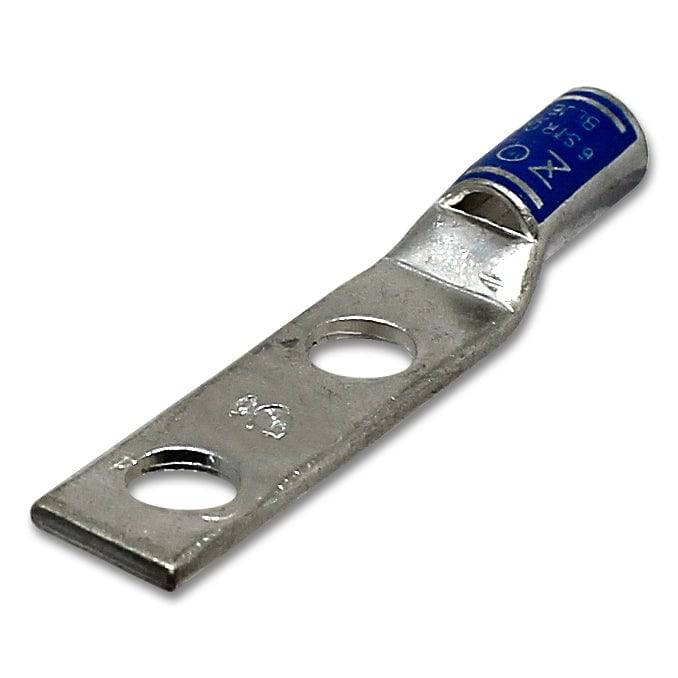

ST614C - 6 AWG Compression Lug - 1/4" Stud Size
Precio original
$1.01
-
Precio original
$1.01
Precio original
$1.01
$1.01
-
$1.01
Precio actual
$1.01
SKU ST614C
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
Product Drawing:
None:
Dimensions & Features:
| Wire Size: | 6 AWG |
| Stud Size: | 1/4" Stud |
| Color: | Blue |
| L: | 60.7mm (2.39") |
| L1: | 43.8mm (1.73") |
| L2: | 25.4mm (1.00") |
| D: | 11.4mm (0.45") |
| D1: | 7.92mm (0.31") |
| D2: | 5.89mm (0.23") |
| B: | 13.7mm (0.54") |
| E: | 7.11mm (0.28") |
| F: | 1.93mm (0.08") |
| Terminal Material: | Tin-Plated Copper |
| Temperature Rating: | 90°C |
| Voltage Rating: | 35KV |
| Max Amp Rating: | 65A |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None:
