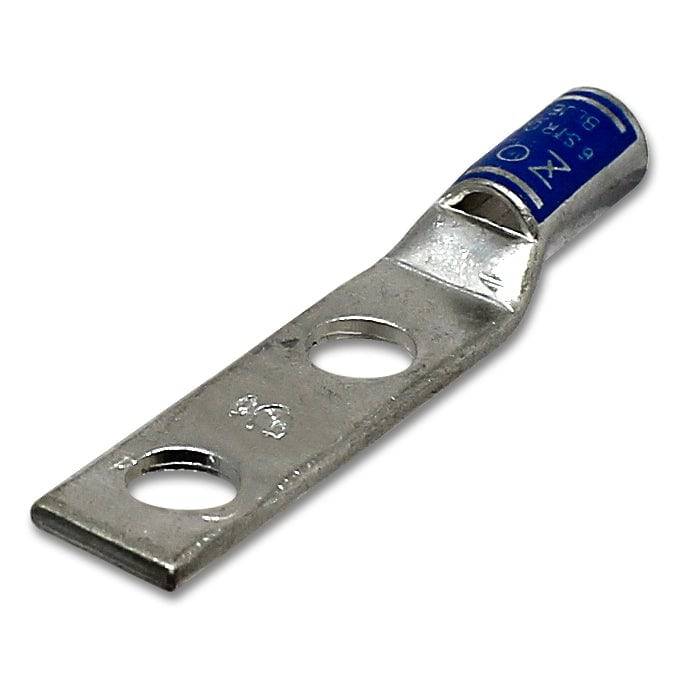

ST638 - 6AWG Compression Lug - 3/8" Stud Size
Precio original
$1.02
-
Precio original
$1.02
Precio original
$1.02
$1.02
-
$1.02
Precio actual
$1.02
SKU ST638
Disponibilidad:
en stock, listo para ser enviado
Compression lugs are designed to terminate copper conductors. Each lug is electro-tin plated to resist corrosion. Ferrules Direct compression lugs are installed using our crimping tools as well as industry standard ones.
Dimensions & Features:
| Wire Range: | 6 AWG |
| L: | 63.3mm (2.49") |
| L1: | 46.5mm (1.83") |
| L2: | 25.4mm (1.00") |
| D: | 15.2mm (0.60") |
| D1: | 7.9mm (0.31") |
| D2: | 5.8mm (0.23") |
| B: | 12.7mm (0.50") |
| E: | 10.4mm (0.41") |
| F: | 1.4mm (0.06") |
| Terminal Material: | Tin-Plated Copper |
| Color: | Gray |
| Stud Size: | 3/8" |
| Temperature Rating: | 90oC |
| Voltage Rating: | 35KV |
| Max AMP Rating: | 65AMP |
| UL Recognized: | No |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Technical Drawing:
Cross References
Cross Reference Parts:Documents
Click to view product spec sheet:
